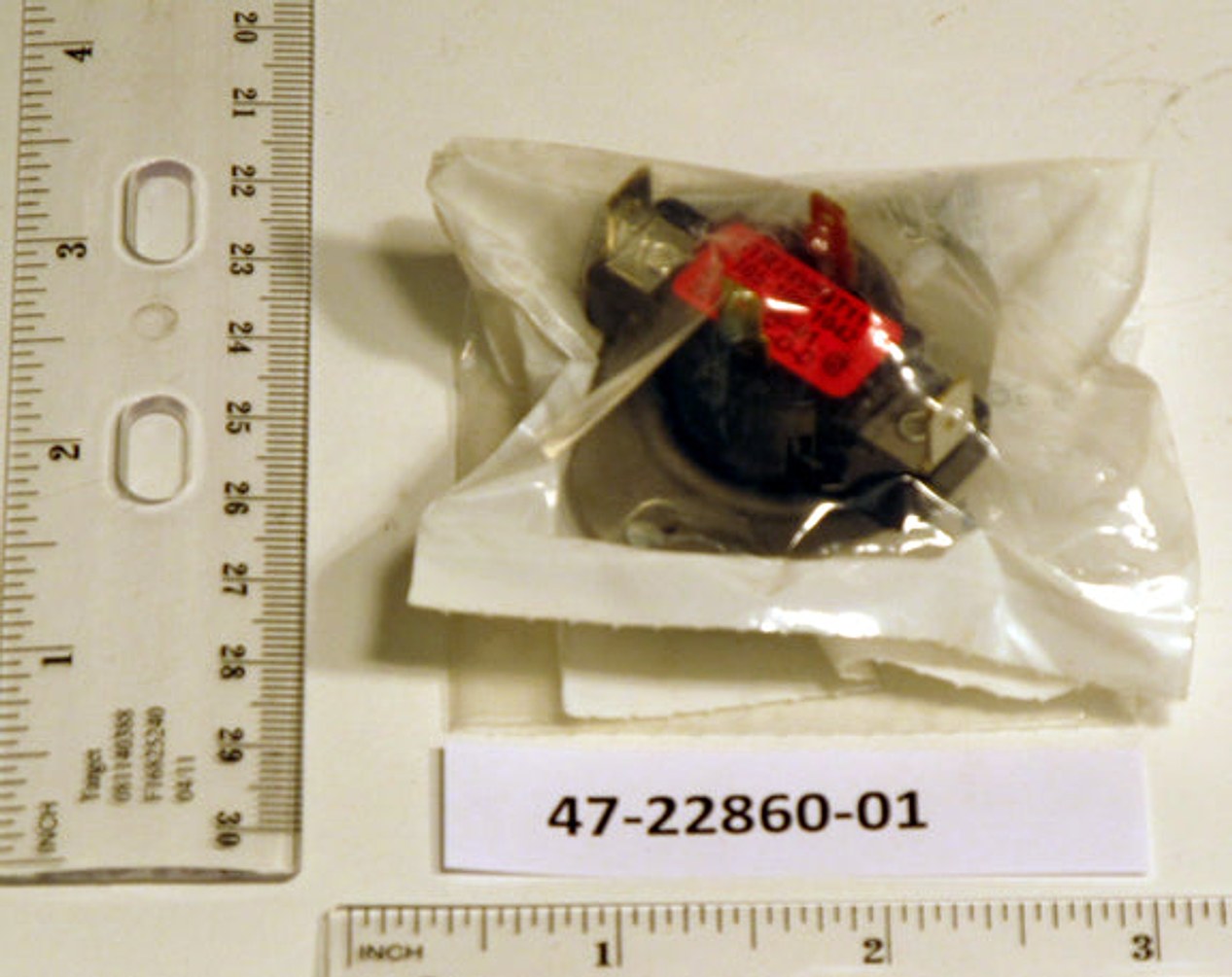

Rheem Furnace Parts 47-22860-01 Temperature Control Limit Switch

The Temperature Control Limit Switch is a key Rheem furnace part designed for safe, automatic shutoff. Model 47-22860-01 delivers precise control for gas furnaces with a large flanged Airstream and auto reset functionality. This temperature switch opens at 105 Deg F and closes at 95 Deg F, ensuring reliable protection against overheating. It carries a 230 Volt AC, 25 Amp contact rating, and uses SPST, NC configuration for dependable, fail-safe operation inside modern gas furnaces. Connection options include 1/4 inch outside quick connect and 3/16 inch inside. Durable red disc face, exposed face for easy inspection, mounting insertion depth of 3/8 inch, and a temperature tolerance of +10/-0 Deg F.

Ideal for the Rheem furnace parts catalog; a must-have component for service technicians and DIY installers seeking reliable safety controls. Designed for safety and long service life in typical home heating systems. Color Code Red helps quick identification in control panels. Suitable for replacement in many Rheem systems, ensuring compatibility with standard gas furnace wiring.

• Type Large Flanged Airstream, Auto Reset
• Temperature range: 105°F Open / 95°F Close
• Contact rating: 230 VAC, 25 A
• Contact configuration: SPST, NC
• Connection type: 1/4" outside quick connect; 3/16" inside
• Application: Gas furnace
• Disc face: Exposed
• Mounting insertion depth: 3/8"
• Temperature tolerance: +10/-0°F (Open/Close)
• Color code: Red
