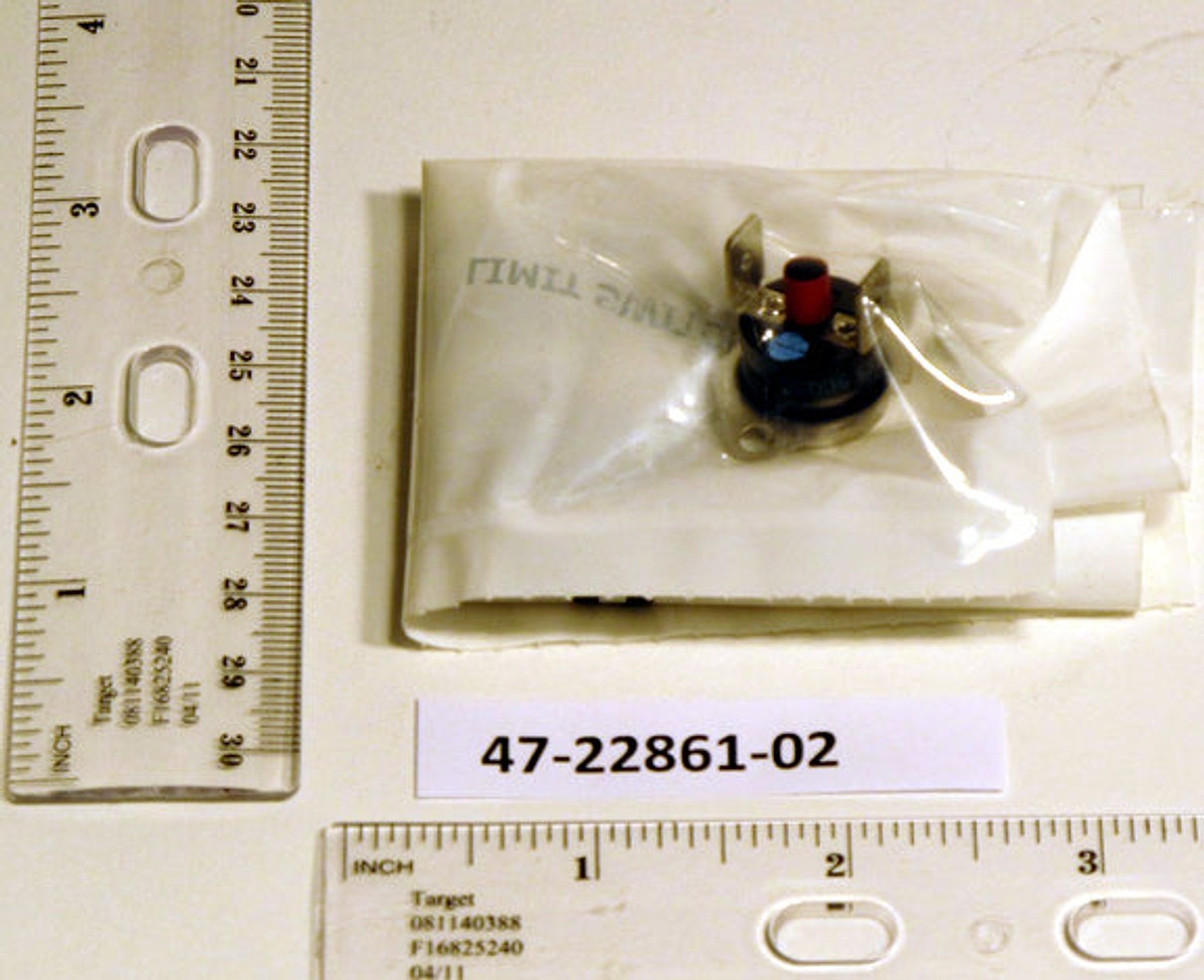

Rheem Furnace Parts 47-22861-02 Temperature Control Limit Switch

The Temperature Control Limit Switch 47-22861-02 is a crucial Rheem furnace part designed for safe, reliable operation in modern gas furnaces. This compact limit switch combines precise temperature sensing with dependable electrical contacts, ensuring the furnace shuts off before overheating. As a trusted Rheem furnace part, it provides dependable performance in residential systems.

Designed for direct compatibility with gas furnaces, this small flanged airstream unit features a manual reset and a blue disc face for easy identification. It supports 120/230 Volt AC, 15/10 Amp ratings and offers SPST, NC contact configuration for straightforward control circuits. Its 1/4 inch quick-connect terminals simplify wiring, while the 5/32 inch insertion depth makes installation clean and secure. Temperature range is 300°F (Open), with a tolerance of +/-14°F, giving stable protection across operating conditions.

• Type: Small Flanged Airstream, Manual Reset
• Temperature Range: 300°F (Open)
• Contact Rating: 120/230V AC, 15/10A
• Contact Configuration: SPST, NC
• Connection Type: 1/4 Inch Quick Connect
• Application: Gas Furnace
• Disc Face Type: Exposed
• Insertion Depth: 5/32 Inch
• Color Code: Blue
