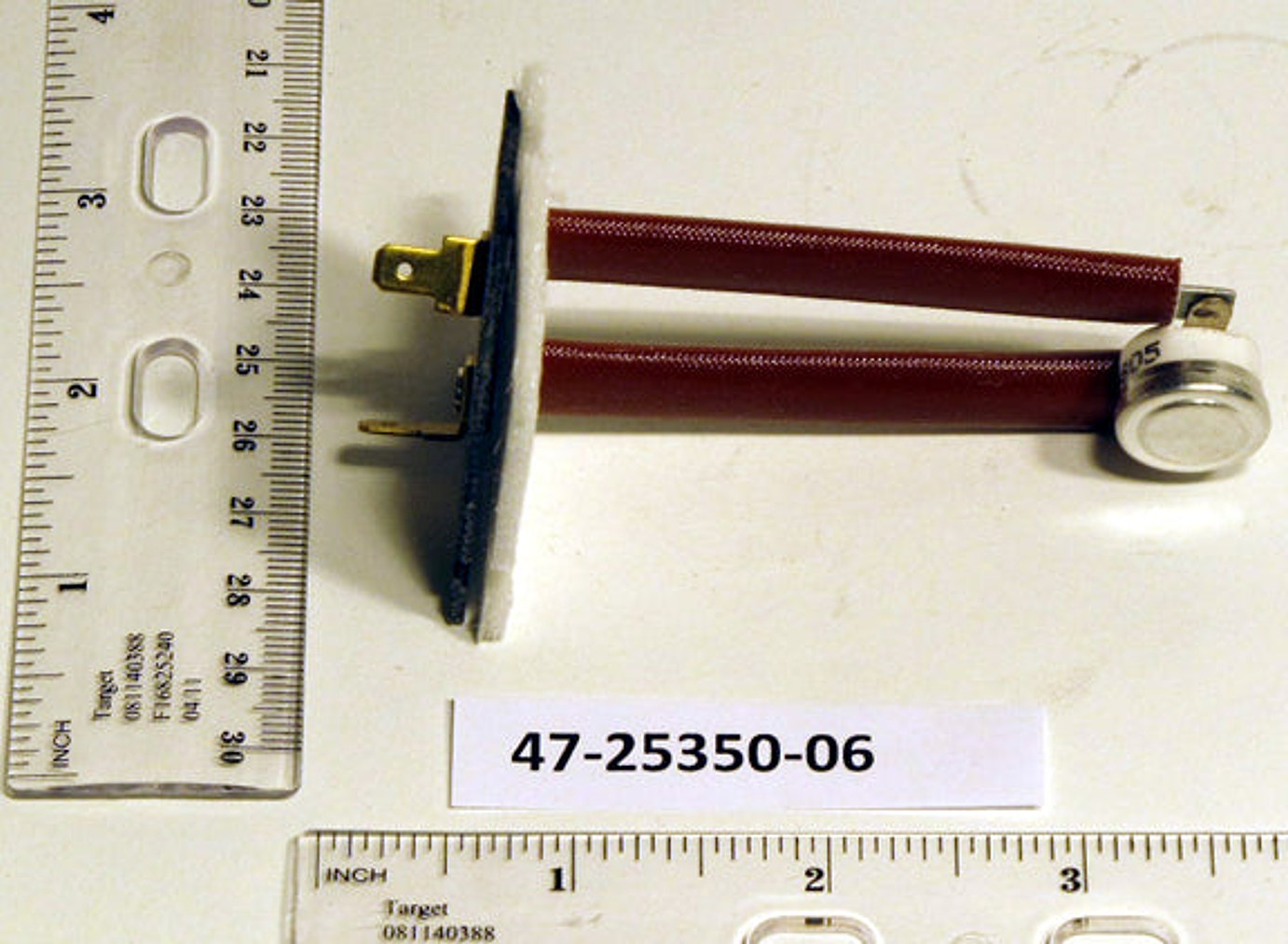

Rheem Furnace Parts 47-25350-06 Temperature Control Limit Switch

Temperature Control Limit Switch for Rheem furnaces is a critical safety component that protects your heating system. The Rheem 47-25350-06 Temperature Control Limit Switch features a board-mount design, a 60° strap angle, and auto-reset for dependable, maintenance-free safety control.

Operating temperatures are 170°F when open and 150°F when closed, with tolerances of ±5°F (open) and ±7°F (close). The switch is rated for 120/230 VAC at 15/10 A and uses SPST, NC contact configuration. It connects through 1/4 inch quick-connect terminals and is intended for gas furnaces.

Encapsulated in an enclosed disc-face housing, this unit fits standard Rheem assemblies with a 3 inch insertion depth and a mounting board size of 1-3/4 by 1-9/16 inches. Its brown color code helps match common furnace wiring harnesses.

• Type: Board-mount, auto-reset
• Temperature range: Open 170°F; Close 150°F (tolerances ±5°F open, ±7°F close)
• Electrical: 120/230 VAC, 15/10 A; Contact: SPST, NC
• Connection: 1/4" quick-connect terminals
• Compatibility: Gas furnace; enclosed disc-face design
• Physical: 3" insertion depth; board size 1-3/4" x 1-9/16"; color brown
