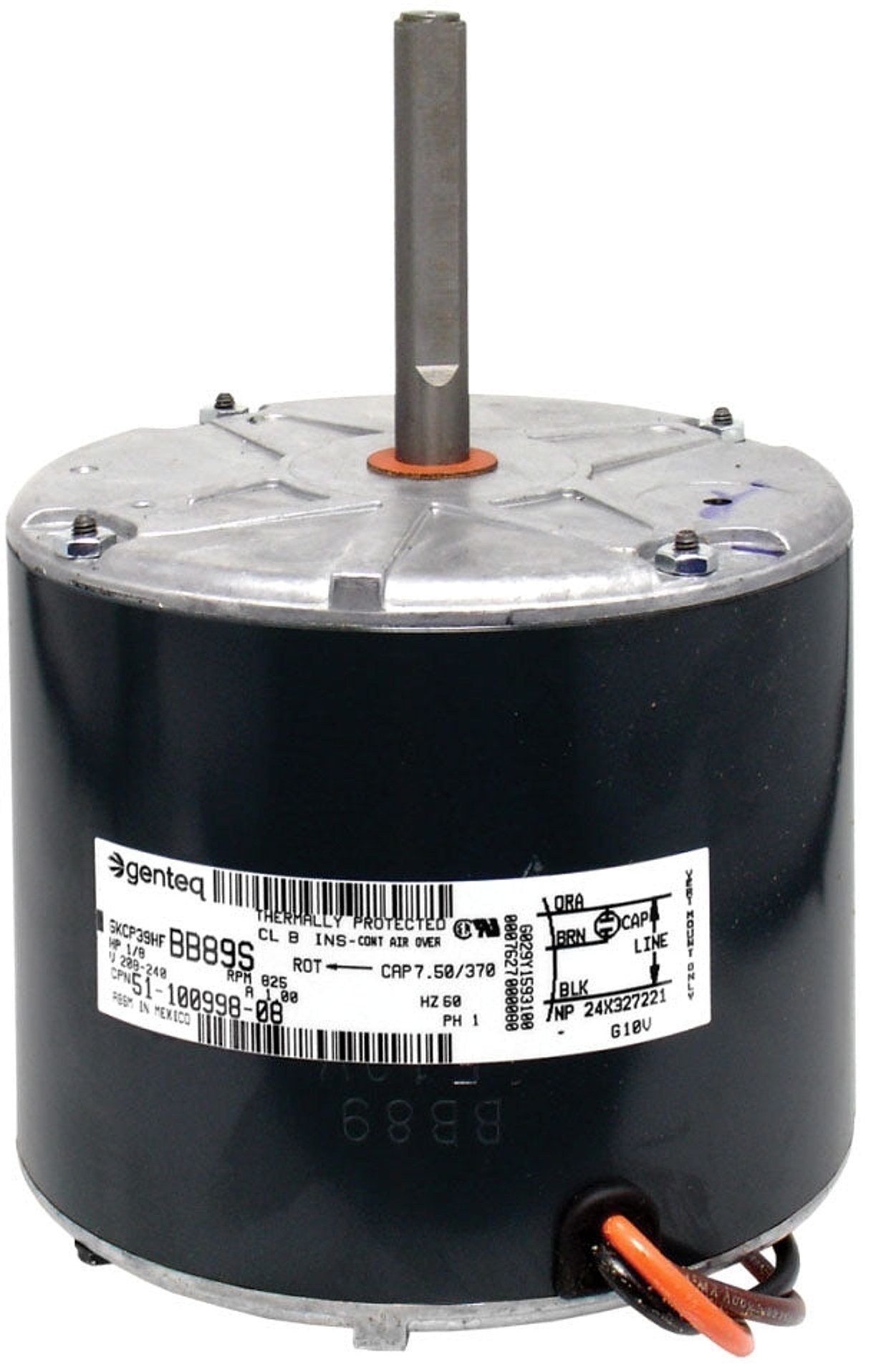

Rheem Furnace Parts 51-100998-08 Condenser Motor

Condenser Motor for Rheem furnace parts 51-100998-08 delivers dependable condenser drive for your cooling system. This 1/8 HP motor operates on 208–230V AC, 60 Hz, with a single speed of 825 RPM and 1 A FLA at 230 V. Built for long life in demanding condenser applications, it features a robust NEMA 48 frame and direct-drive design for quiet, efficient operation.

Engineered for reliability, the motor uses ball bearings and CCW rotation to match standard Rheem configurations. Its compact form—overall length 7-7/16 in, body diameter 5-5/8 in, body length 4-11/16 in—with a 1/2 in diameter shaft running 2-3/4 in, fits most condenser housings. The 7.5 µF capacitor rated at 370V delivers strong starting torque and steady operation across operating conditions.

• Power rating: 1/8 HP
• Voltage & frequency: 208–230V AC, 60 Hz, 1-Phase
• Current draw: 1 A FLA at 230 V
• Speed & drive: 825 RPM, single speed, Direct Drive
• Frame & mounting: NEMA 48, Mounting Shell-Band/End-Boss
• Bearings & rotation: Ball bearings, CCW rotation
• Capacitance: 7.5 µF @ 370V
• Dimensions: Overall length 7-7/16", body 5-5/8" dia x 4-11/16" L, shaft 1/2" dia x 2-3/4" L
