Rheem Furnace Parts 51-100998-30 Condenser Motor

Condenser Motor for Rheem furnaces, model 51-100998-30, delivers dependable cooling system performance with precise control and long life. This 1/3 HP condenser motor runs on 208-230V AC single-phase power across 50/60 Hz, optimized for efficient operation in typical Rheem furnace setups and with straightforward electrical compatibility for quick field replacement.

Built as a genuine Rheem furnace part replacement, it uses a direct-drive design, counterclockwise rotation, and durable ball bearings to minimize noise and wear. The compact profile fits standard condensers with a NEMA Frame 48, 6-1/2" overall length, and a 1/2" shaft, easing installation in tight spaces. This motor is designed to integrate with common condenser controls and maintain steady performance over time.

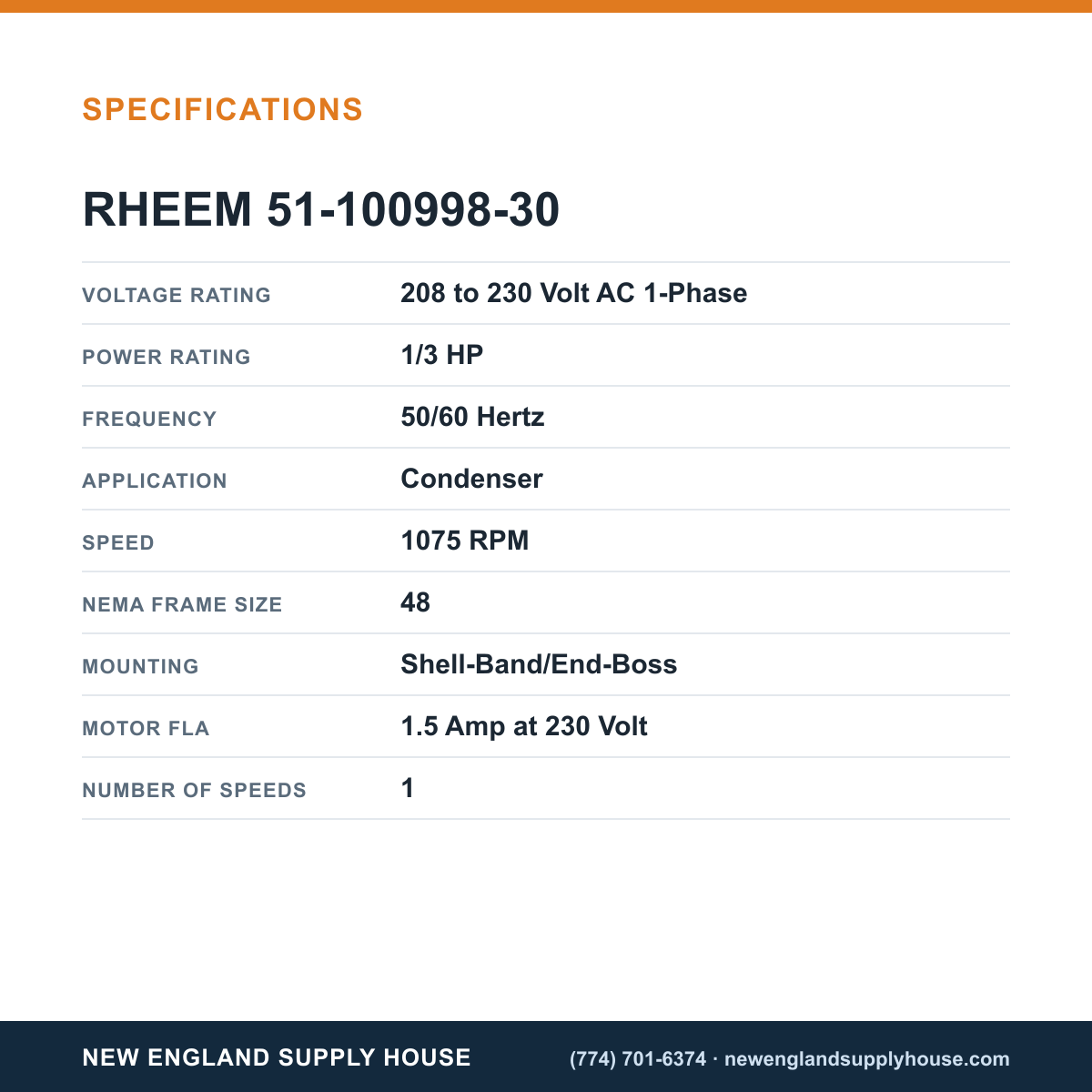

• Power: 1/3 HP
• Voltage: 208-230V AC, 1-Phase
• Frequency: 50/60 Hz
• Full-Load Amps: 1.5 A at 230V
• Speed: 1075 RPM (single speed)
• Rotation: Counterclockwise
• Drive: Direct
• Frame: NEMA 48
• Bearing: Ball
• Capacitance: 5 µF @ 370V
• Motor body size: 5-39/64" diameter x 4-1/2" length
• Overall length: 6-1/2"
• Shaft: 1/2" diameter x 2" length
