Rheem Furnace Parts 51-100999-04 Condenser Motor

Condenser Motor for Rheem furnace systems, model 51-100999-04, delivers reliable cooling performance with durable construction. Powered by 208-230 VAC, 1-Phase, it runs on 50/60 Hz and draws 1.30 A FLA at 230V, making it a stable choice for residential and light commercial condensers. With a single speed of 1075 RPM, CCW rotation, and direct-drive operation, this motor minimizes vibration and promotes efficiency. The NEMA Frame 48 design ensures a snug fit in compatible assemblies, while the sleeve bearing simplifies maintenance.

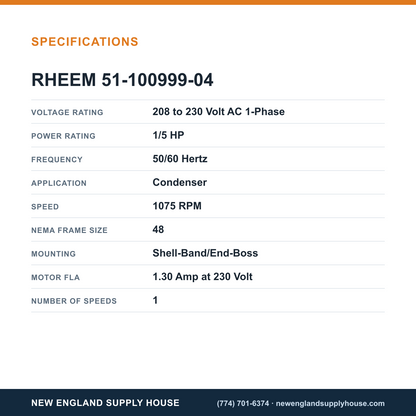

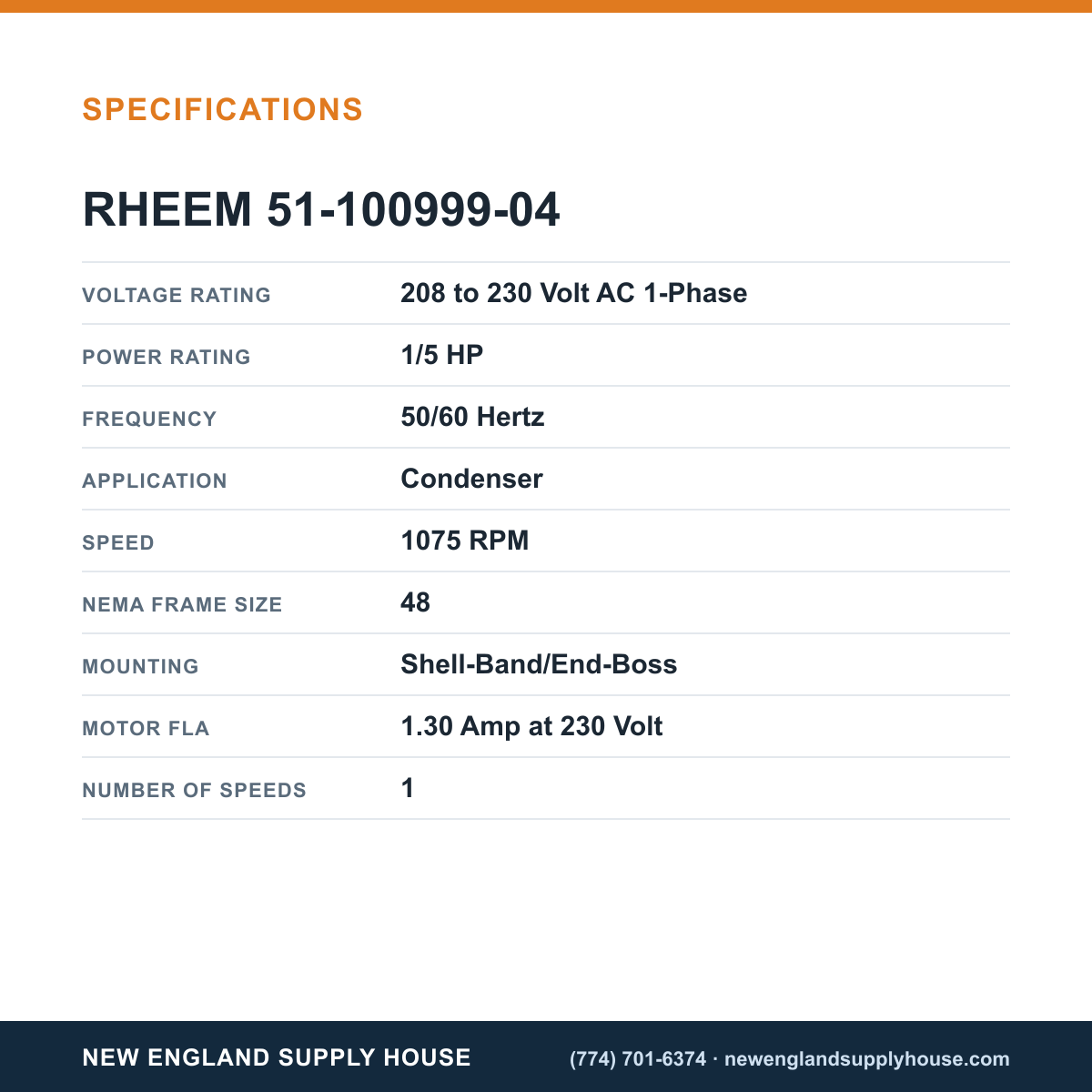

• Power: 1/5 HP
• Voltage: 208-230V AC, 1-Phase
• Frequency: 50/60 Hz
• Current: 1.30 A Full-Load Amps at 230V
• Speed: 1075 RPM (single-speed)
• Rotation: Counter Clockwise
• Frame: NEMA 48
• Mounting: Shell-Band / End-Boss
• Drive: Direct Drive
• Bearings: Sleeve bearing
• Shaft: 1/2" diameter x 2-7/16" length
• Overall dimensions: 6-1/2" length; body 5-5/8" dia x 4-1/16" length
• Capacitance: 3 µF at 370V
