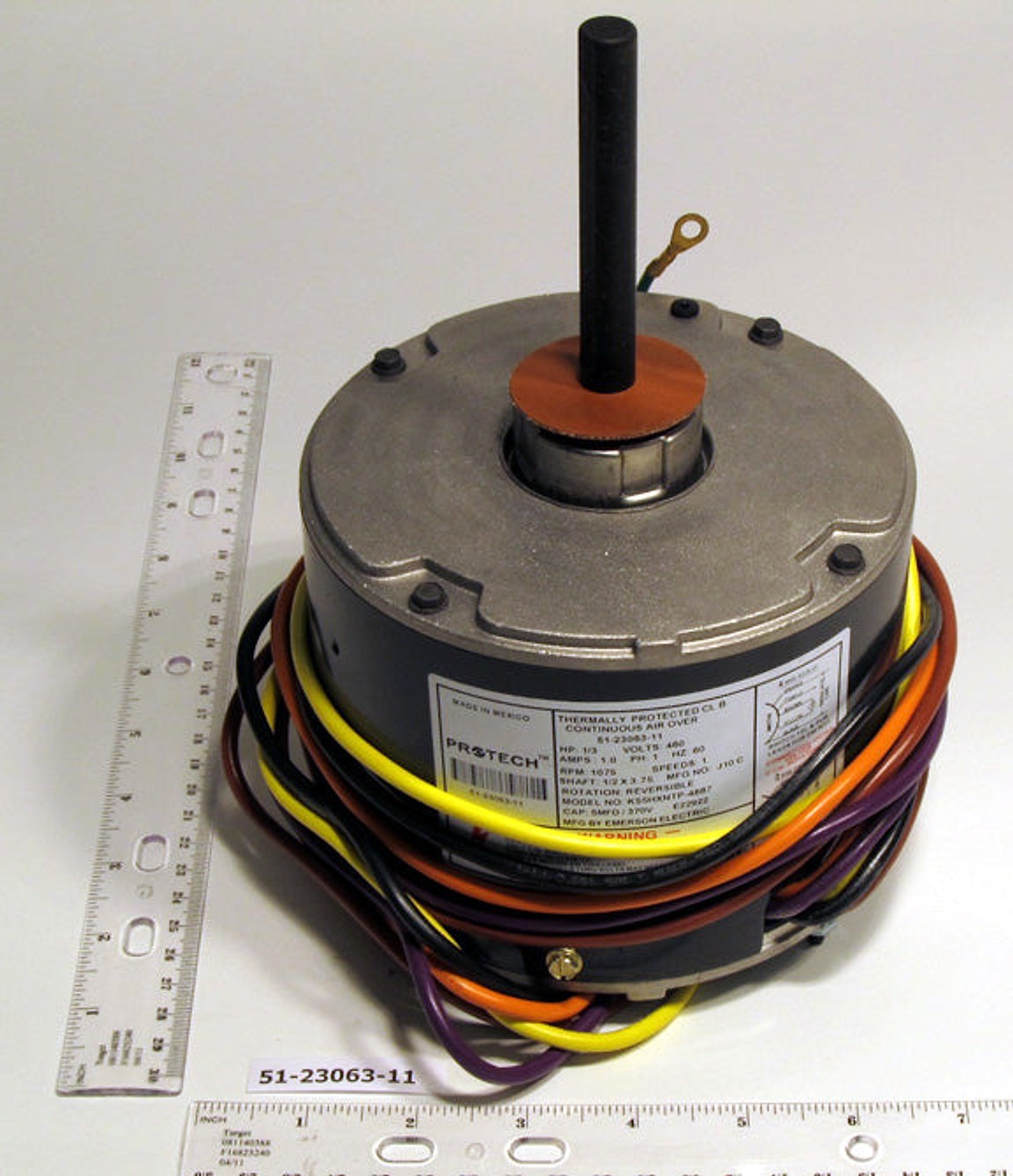

Rheem Furnace Parts 51-23063-11 Condenser Motor

Rheem Furnace Parts 51-23063-11 Condenser Motor delivers dependable condenser operation for your cooling system with a robust 1/3 HP and direct-drive performance.

Designed for 460 Volt AC, 1-Phase service at 60 Hz, this motor runs at 1075 RPM with a sleeve bearing and a NEMA 48 frame for easy replacement in compatible condensers.

The motor features direct drive, shaft size 1/2 inch diameter x 4-1/4 inch, overall length 8-3/8 inch, and mounting options (shell-band, shell-screw, thru-bolt) for flexible installation.

Capacitance is 5 microfarads at 370 volts, suitable for standard condenser applications.

Ideal for Rheem furnace condensers and replacement parts, this motor is built for long life with sturdy sleeve bearings and a compact design that fits tight spaces.

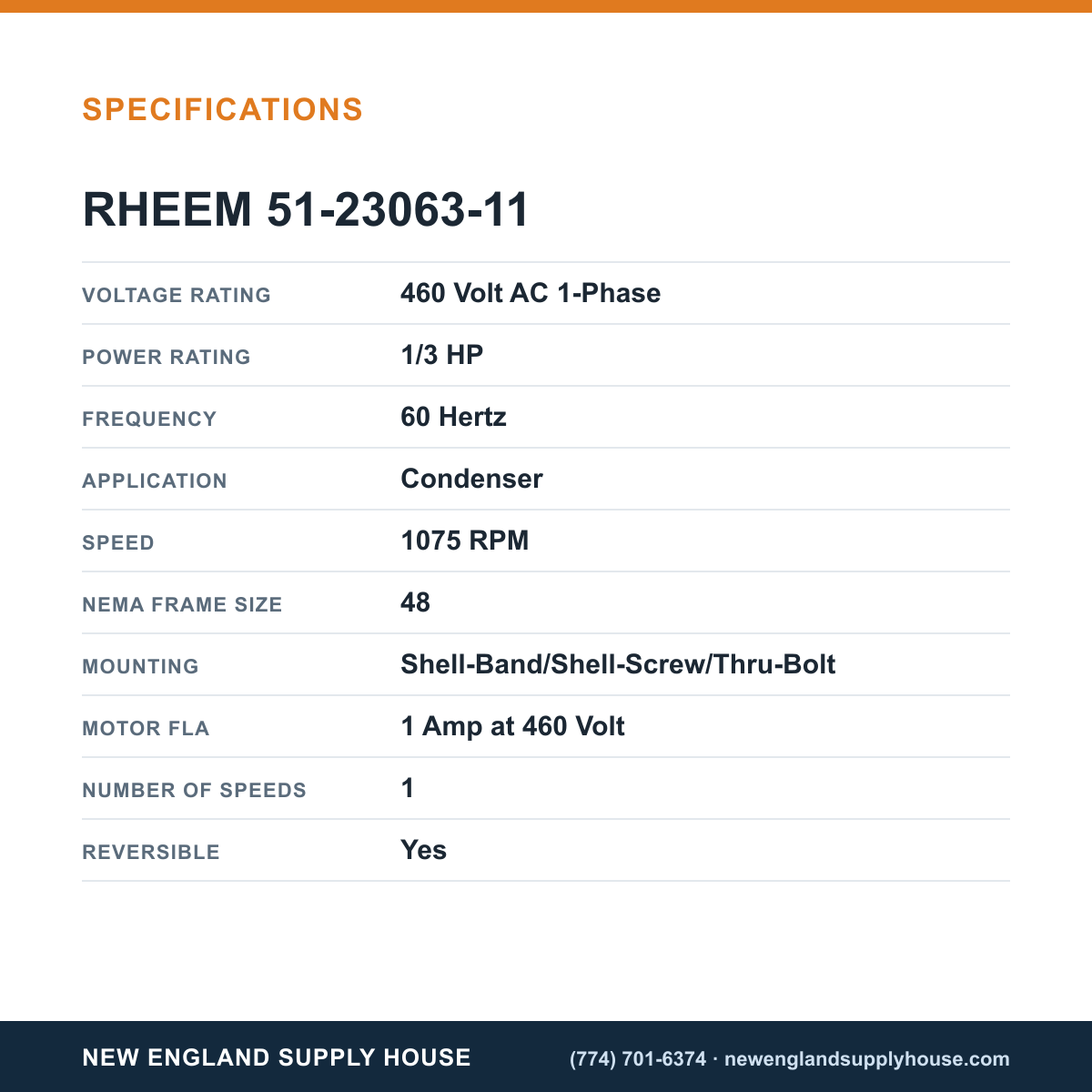

• Power: 1/3 HP
• Voltage: 460V AC, 1-Phase
• Frequency: 60 Hz
• Speed: 1075 RPM
• Frame: NEMA 48
• Mounting: Shell-Band / Shell-Screw / Thru-Bolt
• Drive: Direct
• Bearing: Sleeve
• Application: Condenser
• Capacitance: 5 µF at 370V
