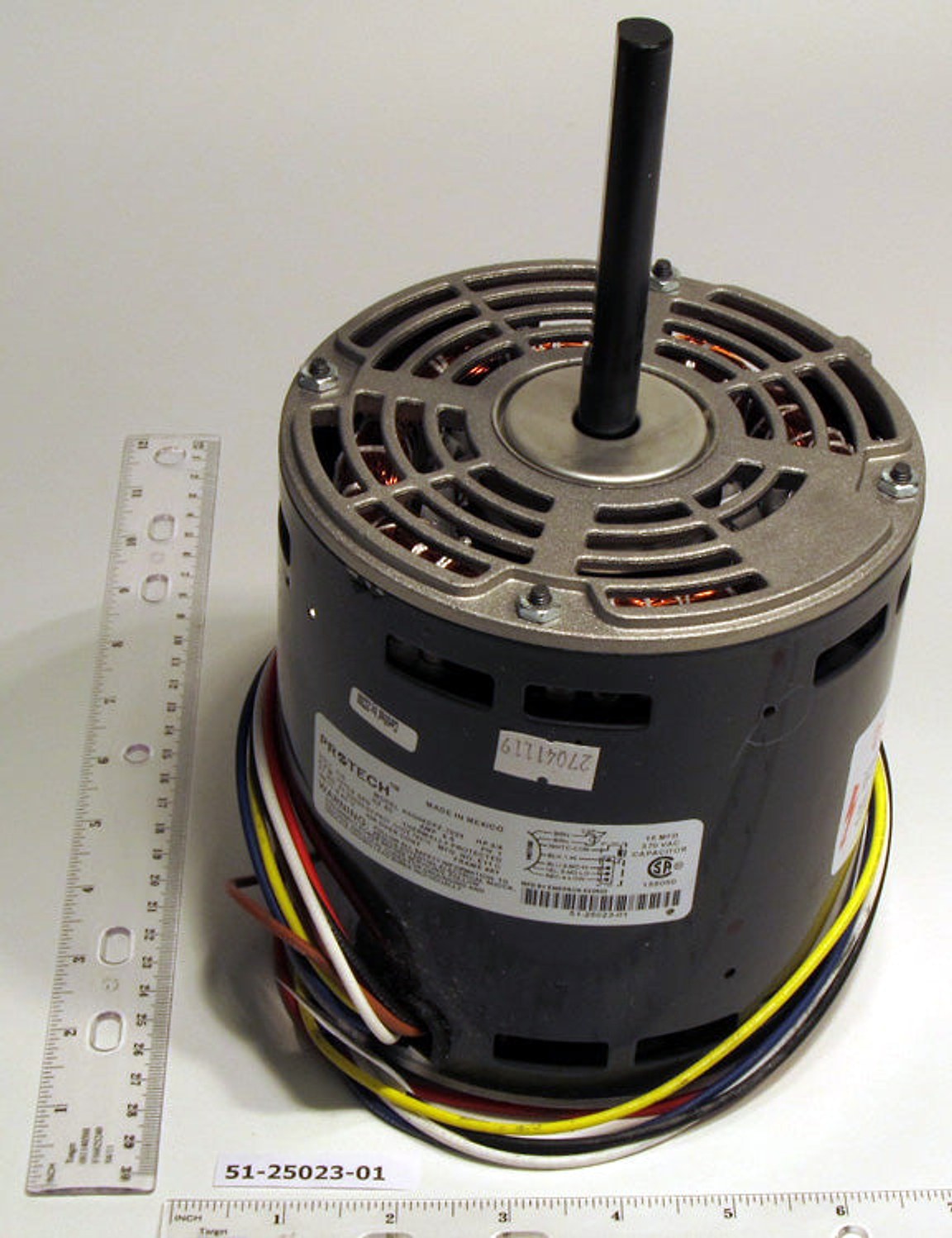

Rheem Furnace Parts 51-25023-01 Blower Motor

Rheem Furnace Parts 51-25023-01 Blower Motor delivers reliable airflow for your gas furnace. This 3/4 HP, 120 Volt AC single-phase blower motor is built for consistent operation in demanding heating applications.

Designed for 60 Hz systems with direct drive and counterclockwise rotation, it combines a sleeve bearing design with four speeds and a target of 1075 RPM to tailor airflow to your setup. Compact and rugged, the motor fits standard Rheem installations and many compatible furnaces.

Key electrical and mechanical specs include 9.5 A full-load current at 120V, capacitance of 15 microfarad at 370V, and a shaft of 1/2 in diameter by 3-3/4 in length, with an overall body size of 5-5/8 in diameter by 5-13/16 in length.

• 3/4 HP, 120V AC, 1-Phase operation
• 60 Hz frequency; 9.5 A FLA
• 4 speeds; 1075 RPM; CCW rotation
• Direct drive; sleeve bearing
• NEMA 48 frame; shaft 1/2" x 3-3/4"
• Capacitance: 15 microfarads at 370V
• Mounting: shell-band or shell-screw
• Application: Gas furnace
