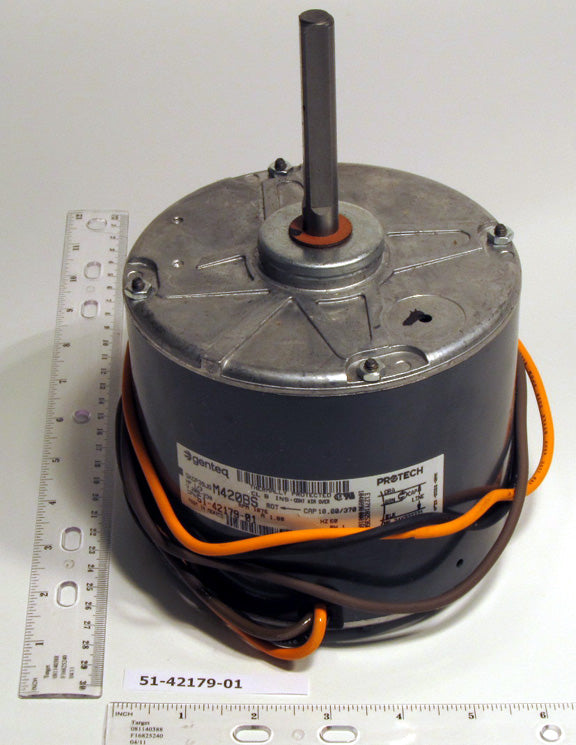

Rheem Furnace Parts 51-42179-01 Condenser Motor

Rheem Furnace Parts 51-42179-01 Condenser Motor is a dependable condenser motor designed to fit Rheem furnace systems. This 1/3 HP, single-phase motor delivers reliable performance on 208 to 230 Volt AC supplies.

Designed as a furnace replacement part, this HVAC condenser motor from Rheem provides long-lasting operation with a direct-drive shaft and CCW rotation. It features a sleeve bearing, a NEMA 48 frame, and compact overall dimensions for easy installation in standard condensers.

• Power rating: 1/3 HP
• Voltage: 208–230V AC
• Frequency: 60 Hz
• Full Load Amps (FLA): 1.8 A at 230V
• Speeds: 1, 1075 RPM
• Frame: NEMA 48
• Rotation: Counterclockwise (CCW)
• Mounting: Shell-Band / Shell-Screw
• Bearing type: Sleeve
• Drive type: Direct Drive
• Application: Condenser
• Capacitance: 10 µF @ 370V
• Shaft size: 1/2" diameter x 3-11/16" length
• Overall length: 8-7/16"

Upgrade your cooling system with a genuine replacement part that matches the original Rheem condenser motor specifications. This part is compatible with standard condensers and supports reliable operation year-round.
