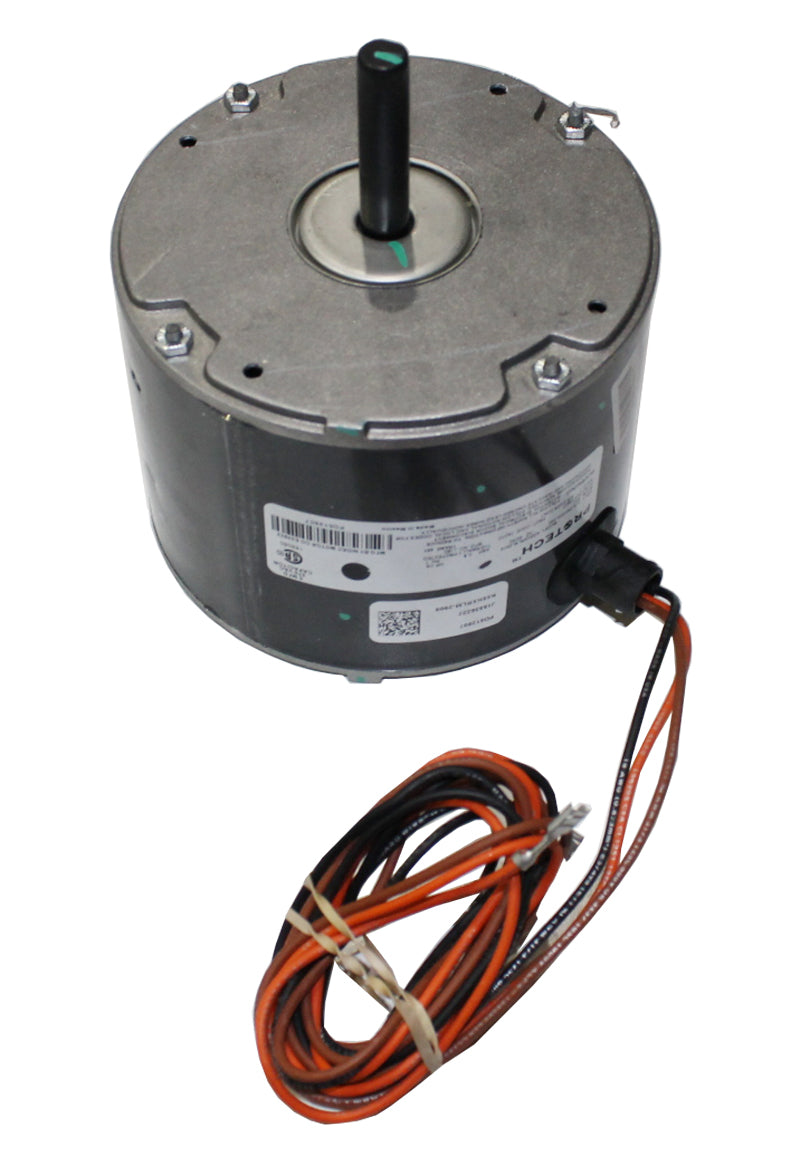

Rheem Furnace Parts PD512807 Condenser Motor

The Rheem PD512807 Condenser Motor is a reliable Rheem furnace part designed for condenser applications. This 1/6 HP condenser motor runs on 208–230V AC, 60 Hz, single-phase power and draws about 0.6 A at 230V.

Built with a NEMA 48 frame and direct-drive construction, it delivers a trouble-free CCW rotation at 825 RPM and uses a sleeve bearing for long life. The compact design measures 6-1/2 inches overall length, with a 5-5/8 inch diameter body and a 1/2 inch diameter shaft (2 inches long). Capacitance is 5 µF at 370 V. Application: condenser.

• Horsepower: 1/6 HP
• Voltage / Phase: 208–230V AC, 1-Phase, 60 Hz
• Speed: 825 RPM, CCW rotation
• Frame & Drive: NEMA 48 frame, Direct-Drive
• Dimensions: 6-1/2" L overall; 5-5/8" diameter; 1/2" shaft (2" length)
• Bearings: Sleeve bearing
• Capacitor: 5 µF at 370 V
• Application: Condenser
