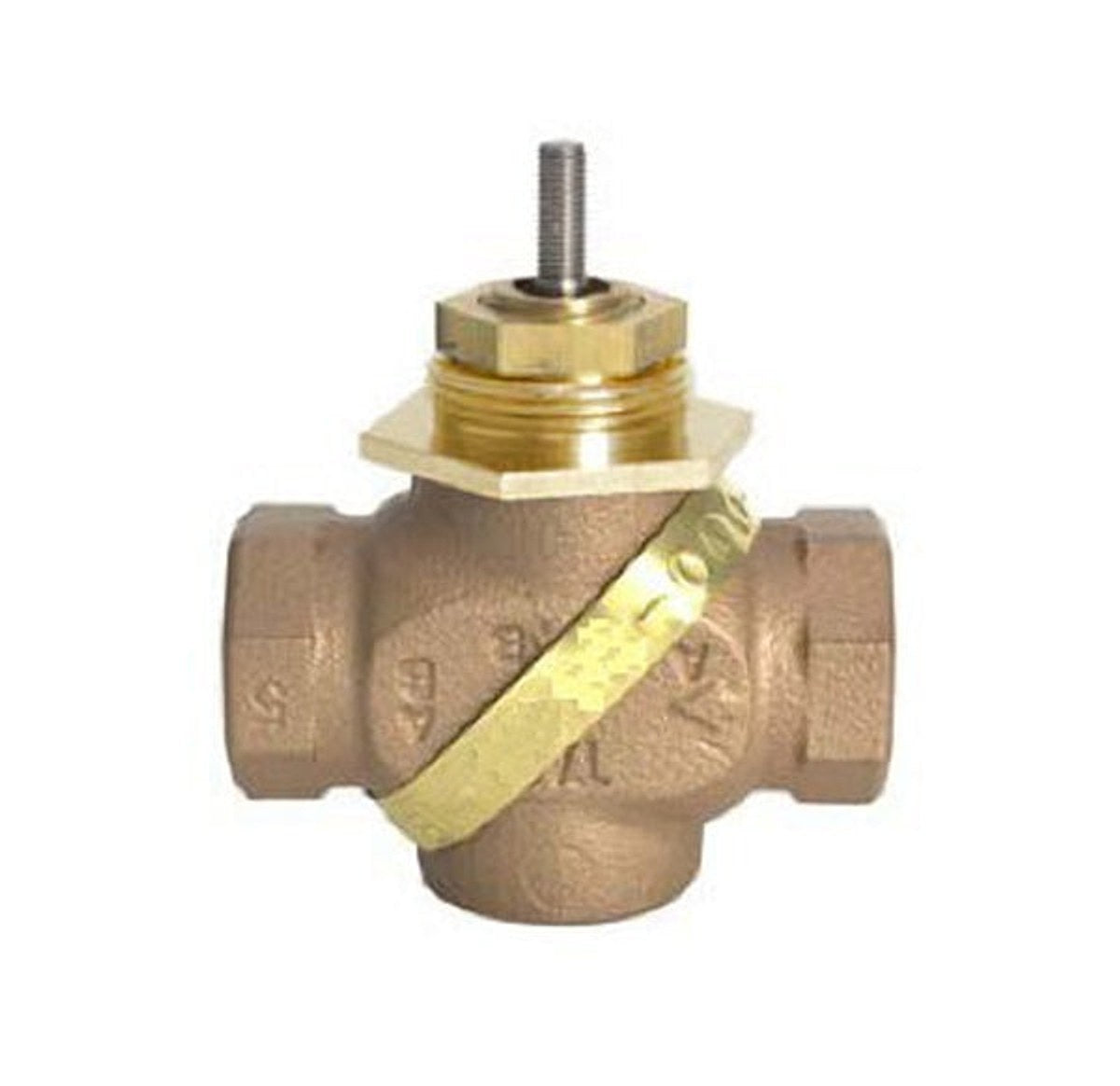

Schneider Electric VB-7213-0-4-02 Globe Valve Body

Globe Valve Body from Schneider Electric (VB-7213-0-4-02) delivers precise, fine-tuned control for hot or chilled water and low-pressure steam systems. This 2-Way globe valve features a 1/2 inch nominal size, a stem design that is up-open, and a threaded bonnet for reliable performance in compact installations.

Constructed with a bronze body and a 316 stainless steel stem, it uses PTFE/EPDM seals and an EPDM disc to ensure dependable sealing across a wide temperature range. The valve is rated for 35 PSIG steam and 87 PSI water, making it ideal for HVAC and light process applications. It meets ANSI V and IV, PED, and CRN standards and is RoHS compliant. With a flow capacity of 1.3 Cv, it enables smooth, efficient, and responsive regulation for comfortable, energy-efficient operation.

• 2-Way globe valve with 2-Position actuation for precise control
• Nominal size: 1/2 inch; stem design: Up Open; threaded bonnet
• Bronze body; 316 stainless steel stem; bronze seat
• Seals: PTFE/EPDM; disc: EPDM
• Temperature range: 20–281°F; Pressure: 35 PSIG steam, 87 PSI water
• Standards: ANSI V and IV, PED, CRN; RoHS compliant
• Flow capacity: 1.3 Cv
