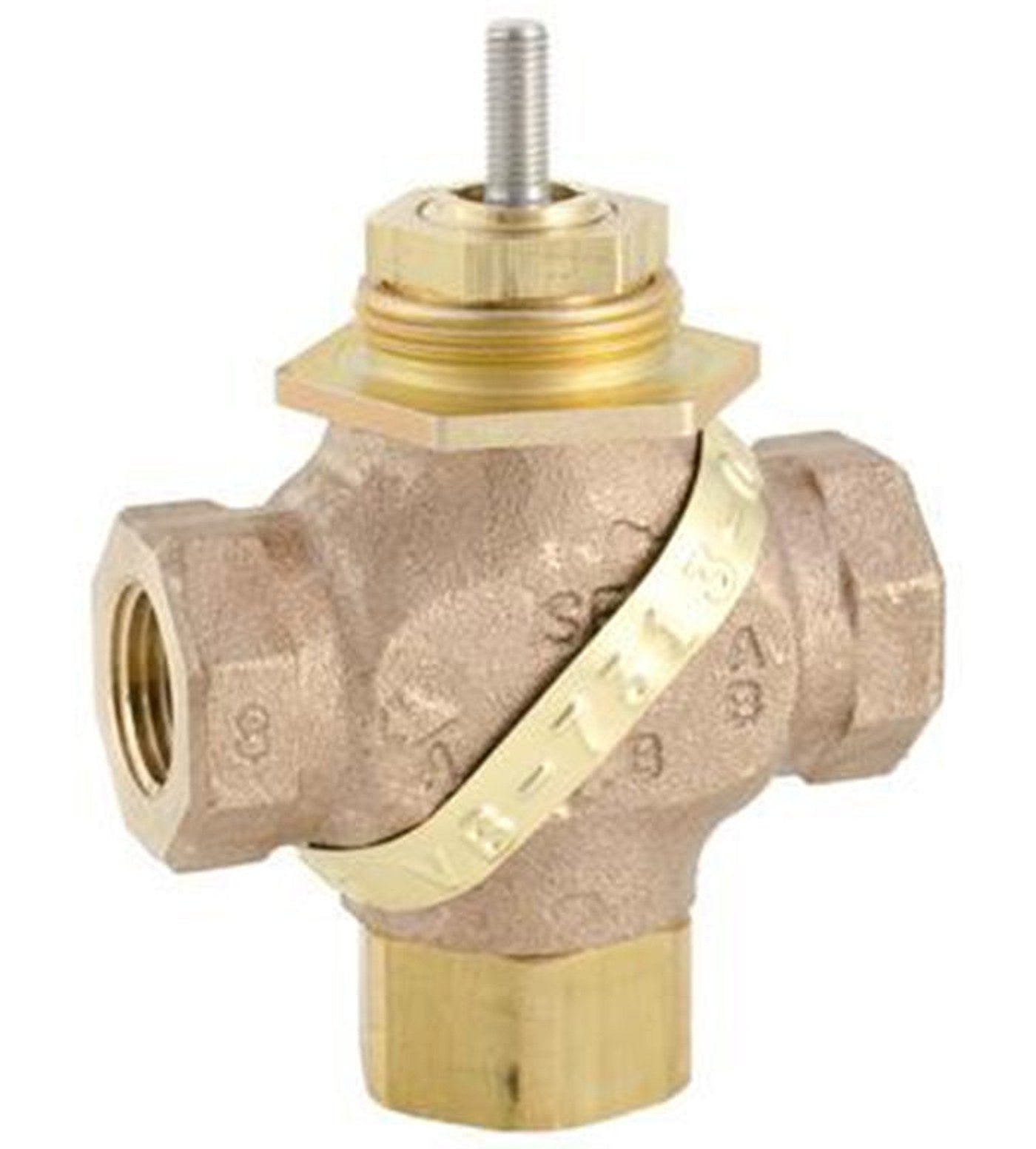

Schneider Electric VB-7313-0-4-04 Globe Valve Body

Globe Valve Body, the Schneider Electric VB-7313-0-4-04, is a 3-Way mixing valve with 2-position actuation designed for precise, dependable regulation. This compact unit uses a 1/2 inch nominal size for easy integration into chilled water, hot water, and steam lines.

The bronze body features a 316 stainless steel stem, bronze seat, and PTFE/EPDM seals with an EPDM disc, delivering durable service in demanding environments. It supports temperatures from 20 to 281°F and handles up to 87 psi (water) for reliable performance across varying conditions.

High-range capability provides fine, accurate control for efficient, responsive regulation, ideal for precise mixing and zone control. This valve meets ANSI V & IV, PED, and CRN standards and is RoHS compliant, with a flow coefficient of 4.4 Cv.

Key features:

• 3-Way globe valve design for mixing
• 2-position actuation for simple control
• Nominal size 1/2 inch
• Bronze body with 316 stainless steel stem
• Bronze seat; PTFE/EPDM seals; EPDM disc
• Temperature range: 20–281°F
• Pressure rating: 87 psi (water)
• High-range capability for precise regulation
• Standards: ANSI V/IV, PED, CRN; RoHS compliant
• Flow capacity: Cv 4.4
