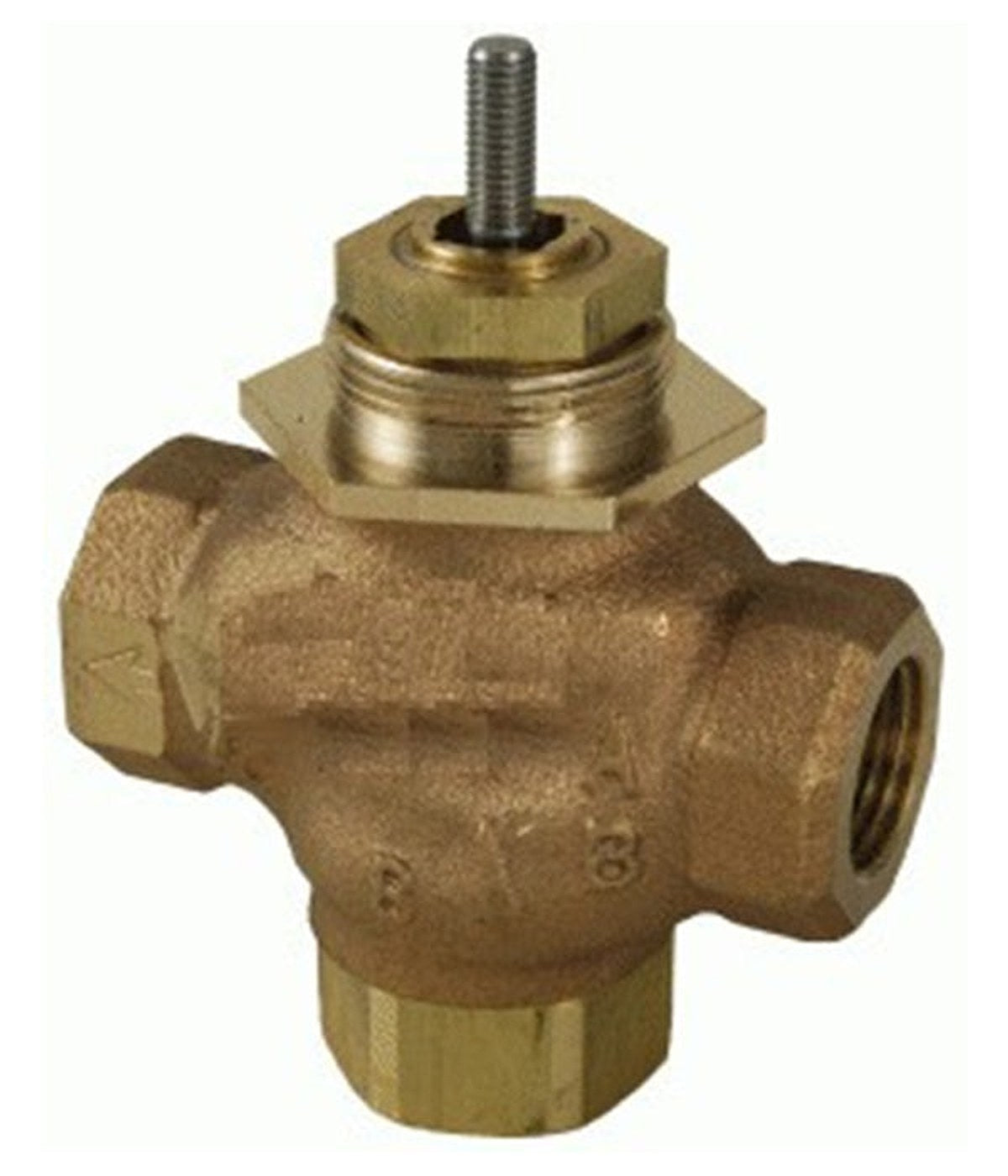

Schneider Electric VB-7313-0-4-06 Globe Valve Body

The Globe Valve Body (Schneider Electric VB-7313-0-4-06) offers precise, reliable flow control for hot water, chilled water, and steam systems. This 3-Way mixing valve features 2-Position actuation and a 3/4 inch nominal size for versatile installation and accurate regulation.

Engineered for durability, the bronze body houses a 316 stainless steel stem and bronze seats, while PTFE/EPDM seals and an EPDM disc deliver robust chemical resistance. The valve operates from 20 to 281 °F (media) with a 87 PSI (water) rating, and is suitable for ANSI V and IV, PED, and CRN standards. RoHS compliant, it supports efficient, responsive regulation in demanding environments. The high-range capability provides fine control for more comfortable, energy-saving regulation.

• 3-Way mixing for precise, mixed-flow control
• 2-Position actuation for reliable on/off operation
• Nominal size 3/4" with threaded bonnet for easy maintenance
• Bronze body with 316 stainless steel stem and bronze seats
• PTFE/EPDM seals and EPDM disc for chemical resistance
• Temperature range 20–281 °F and 87 PSI water pressure rating
• RoHS compliant; ANSI V/IV, PED, CRN approved
• Flow capacity: 7.5 Cv
