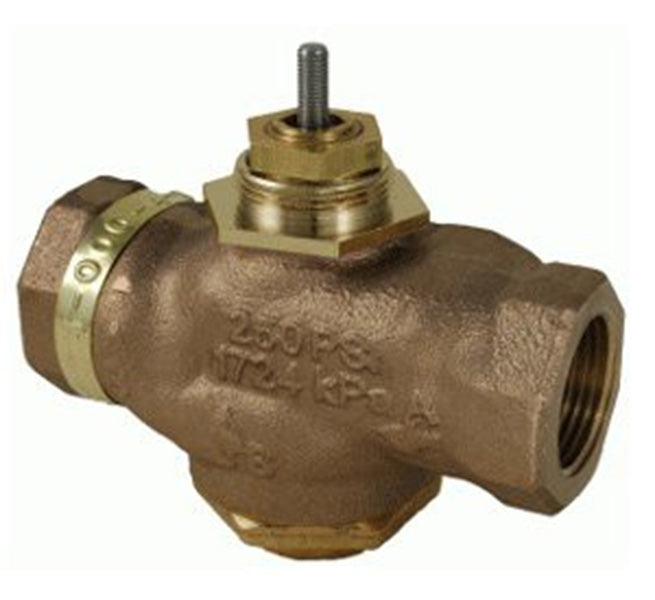

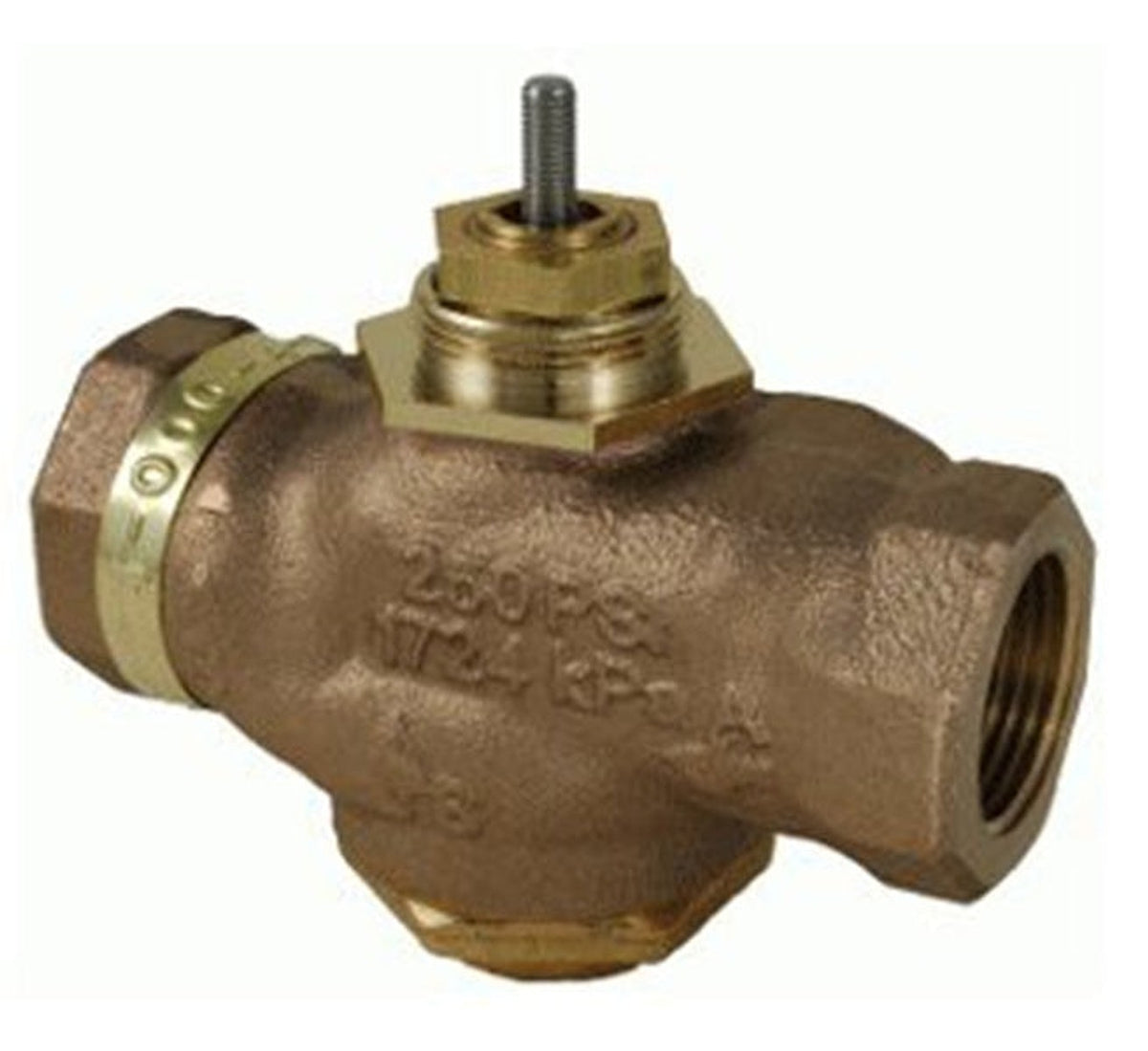

Schneider Electric VB-7313-0-4-08 Globe Valve Body

Globe Valve Body from Schneider Electric, model VB-7313-0-4-08, is a high-precision 3-Way mixing valve with 2-Position actuation. This 1 inch nominal size valve uses a stem design that closes A-Port and opens B-Port to the common AB-Port, delivering precise flow control.

Constructed for durability and reliability, it features a bronze body, 316 stainless steel stem, bronze seat, and PTFE/EPDM seals with an EPDM disc. It handles temperatures from 20 to 281 Deg F (media) and supports up to 87 PSI (water).

Ideal for hot/chilled water and steam systems, it complies with ANSI V and IV, PED, CRN standards and is RoHS compliant. The valve offers a high flow capacity of Cv 14 for responsive regulation.

• 3-Way mixing design enables fine, accurate temperature control for efficient operation
• 2-Position actuation for reliable on/off control
• 1" nominal size for easy integration into standard piping
• Bronze body with 316 stainless steel stem and bronze seat for durability
• PTFE/EPDM seals and EPDM disc for broad chemical compatibility
• RoHS compliant and certified to ANSI, PED, and CRN standards
