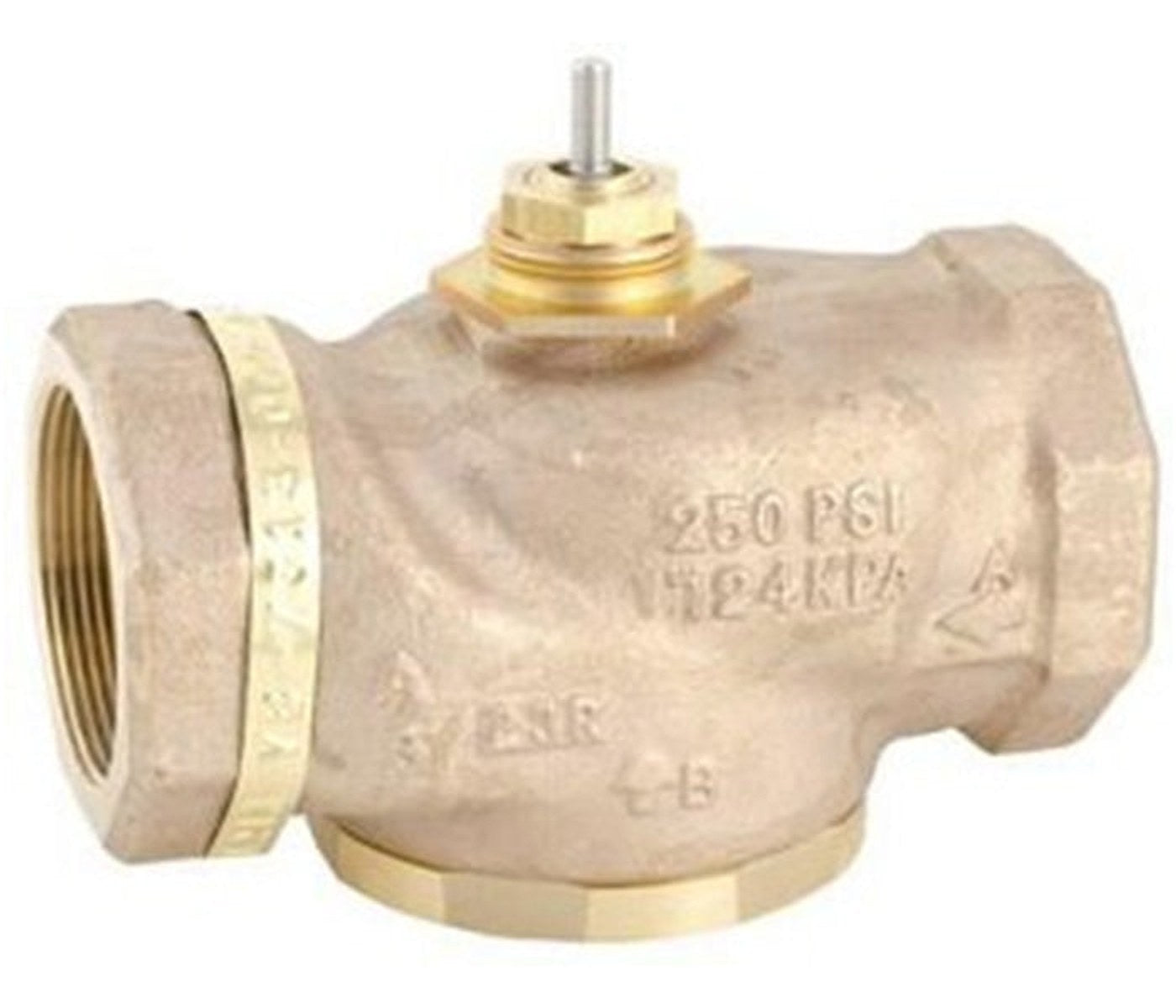

Schneider Electric VB-7313-0-4-10 Globe Valve Body

Schneider Electric VB-7313-0-4-10 Globe Valve Body is a high-precision 3-Way mixing valve designed for reliable control in HVAC systems. With 2-Position actuation and a nominal size of 1-1/2 inch, it routes flow between the A-Port, B-Port, and common AB-Port to deliver mixing or diverting control as needed. The bonnet is threaded, the body is Bronze, and the stem is made from 316 Stainless Steel, delivering durability in demanding environments.

It uses Bronze seats with PTFE/EPDM seals and EPDM discs to ensure tight shutoff and long life. The valve is rated for temperatures from 20 to 281°F and up to 87 PSI for water, with a flow capacity of Cv 28 for responsive regulation. This globe valve body supports hot/chilled water or steam service and complies with ANSI V and IV, PED, CRN, and RoHS standards. Perfect for energy-efficient, comfortable regulation in commercial heating and cooling systems.

• 3-Way mixing and flow control for precise temperature regulation
• 2-Position actuation for reliable on/off control
• Bronze body with 316 stainless steel stem for durability
• Bronze seats and PTFE/EPDM seals for tight shutoff
• EPDM disc material suitable for hot/chilled water and steam
• Temperature range: 20–281°F; Pressure rating: 87 PSI (water)
• Cv 28 enables responsive flow regulation
• RoHS compliant; ANSI V/IV, PED, CRN validated
