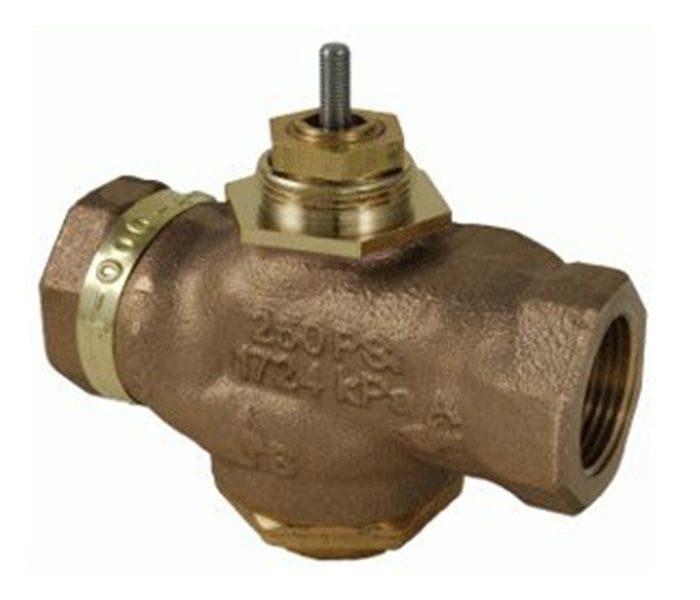

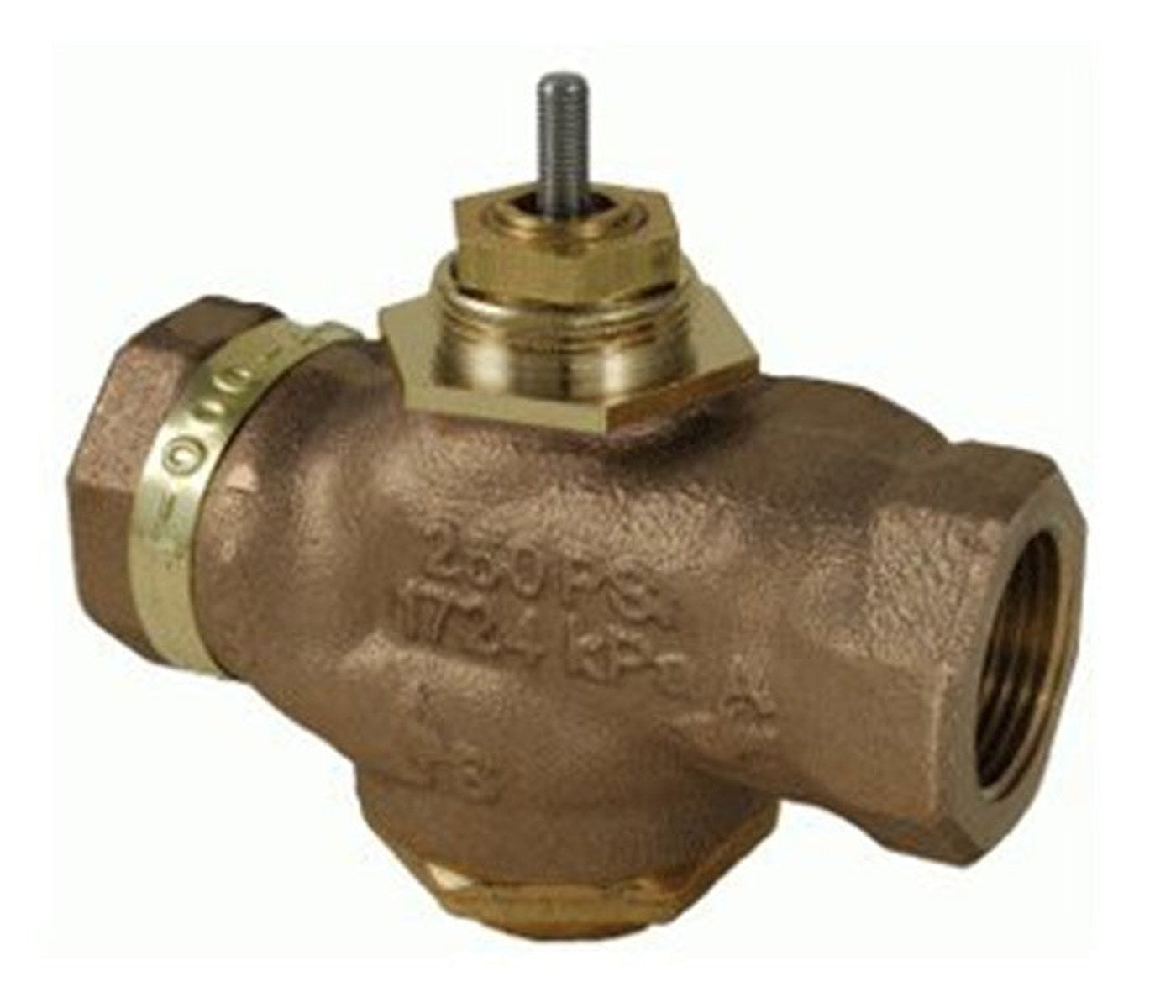

Schneider Electric VB-7323-0-4-08 Globe Valve Body

The Globe Valve Body from Schneider Electric VB-7323-0-4-08 delivers precise control for hot and chilled water, steam, and other media. This 3-way diverting valve features a 2-position actuation and a 1 inch nominal size, with a stem design that closes the A-Port and opens the AB-Port to the common B-Port for accurate, responsive diverting operation. Constructed with a bronze body, a 316 stainless steel stem, bronze seats, and EPDM discs, it uses PTFE/EPDM seals for dependable performance across operating temperatures. The valve bears a temperature range of 20 to 281 Deg F and a pressure rating of 35 PSIG (Water). It is RoHS compliant and meets ANSI III, PED, and CRN standards, ensuring broad compatibility in commercial systems. With a flow capacity of 14 Cv, this valve offers high-range control for efficient regulation and comfortable system operation.

• 3-Way diverting design for precise flow division
• 2-position actuation for reliable on/off control
• 1 inch nominal size for compact installation
• Bronze body with 316 stainless steel stem
• Bronze seats and EPDM discs with PTFE/EPDM seals
• Temperature range: 20 to 281 Deg F; Pressure: 35 PSIG (Water)
• Flow capacity: 14 Cv
• RoHS compliant; ANSI III, PED, CRN standards
• Applications: hot/chilled water or steam
