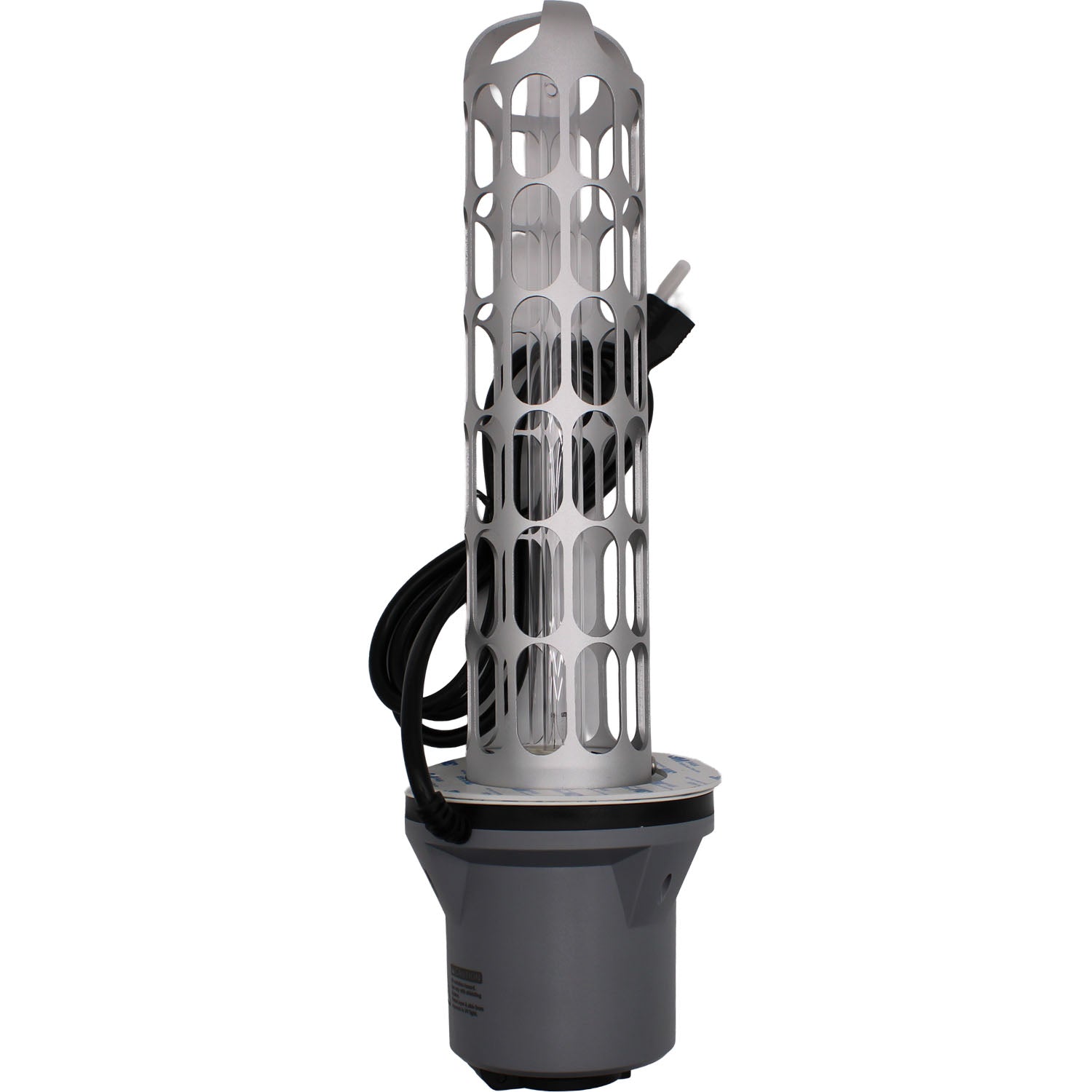

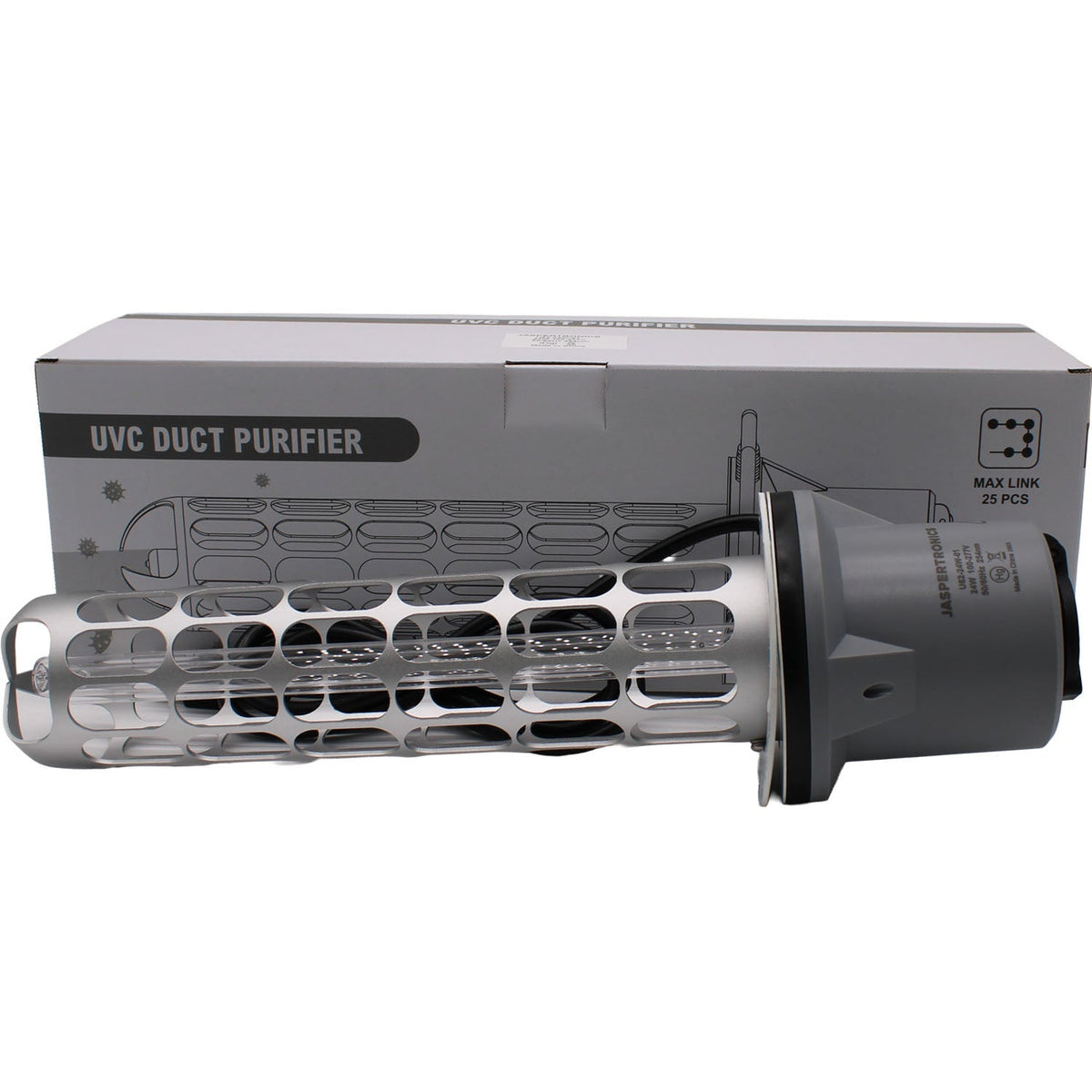

24W 254nm Germicidal U62 UVC HVAC Purification Lamp with Duct Disinfection

24W 254nm Germicidal U62 UVC HVAC Purification Lamp with Duct Disinfection

Regular price $96.59 USD
Regular price $119.99 USD Sale price $96.59 USD
Sale Sold out
Shipping calculated at checkout.

Quantity

SKU:U62-024W-01

View full details
  • Important Specs
  • 0 Lumens
  • 8000 Hours
  • 24 Watts

The U62 HVAC Purification Lamp is expertly designed for ventilation duct purification, ensuring air is cleansed before entering your space. Featuring a 254nm high-power UVC quartz lamp, it delivers 360° bacteria-killing efficiency while remaining completely safe, as the UVC irradiation is confined within the duct. Operating at 24W with a 100-277V input, this lamp supports human and machine coexistence without UV leakage. It offers convenient series connection, replaceable UVC lamp tubes, and an indicator light for status monitoring. With a service life exceeding 8,000 hours, it provides reliable and effective air purification.

Applications

  • Office Buildings
  • Hospital / Health Care Facilities
  • Gymnasiums
  • Schools / Universities
  • Residential / Hotels
  • Supermarkets / Retail Environments
  • Restaurants / Entertainment Centers
  • Industrial / Factory
  • Laboratory / Research Facility
  • Specialized Ventilation Purification: Designed specifically for purifying air in ventilation ducts, ensuring clean air flows into rooms.
  • Safe UVC Irradiation: The UVC component is confined within the duct, making it completely safe for human exposure while effectively killing bacteria.
  • Wide Application Range: Suitable for office buildings, healthcare facilities, gyms, schools, hotels, supermarkets, restaurants, factories, and research labs.
  • Reliable and Safe Operation: UVC lamps operate in a closed HVAC space without UV radiation leakage, ensuring safety for humans, animals, and plants.
  • 360° Ultraviolet Purification: Built-in 254nm UVC quartz lamp offers all-around radiation and purification.

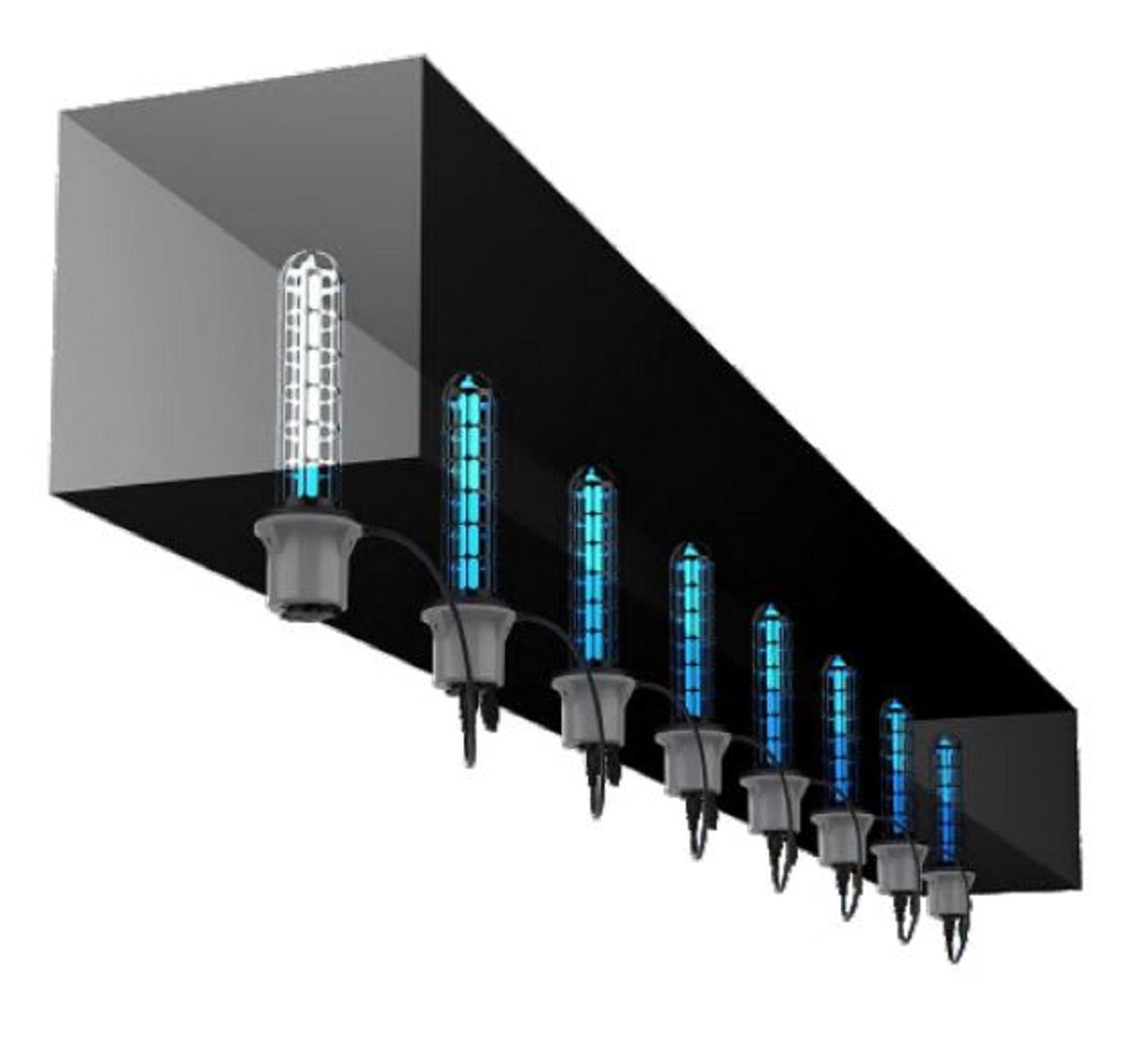

  • Convenient Series Connection: Lamps can be wired in series with up to 25 connected, allowing easy replacement of the UVC tube.
  • Status Indicator Light: An indicator light changes from green to red if the lamp is damaged or has poor electrical contact, ensuring easy maintenance and safety.
  • Long Service Life: With a lifespan exceeding 8,000 hours, it provides reliable and effective air purification.


24W U62 HVAC Purification Lamp with UVC Duct Disinfection

Lamp Specifications

Specifications Data
Product Code U62-024W-01
Lamp Type UVC
Lamp Base 24W H-type quartz purification lamp tube
Plug Type American Standard
Wavelength 254 nm
Wattage 24W
Voltage 100-277V AC
Irradiation Intensity 46.47μW/cm²
(Environmental temperature 25℃)

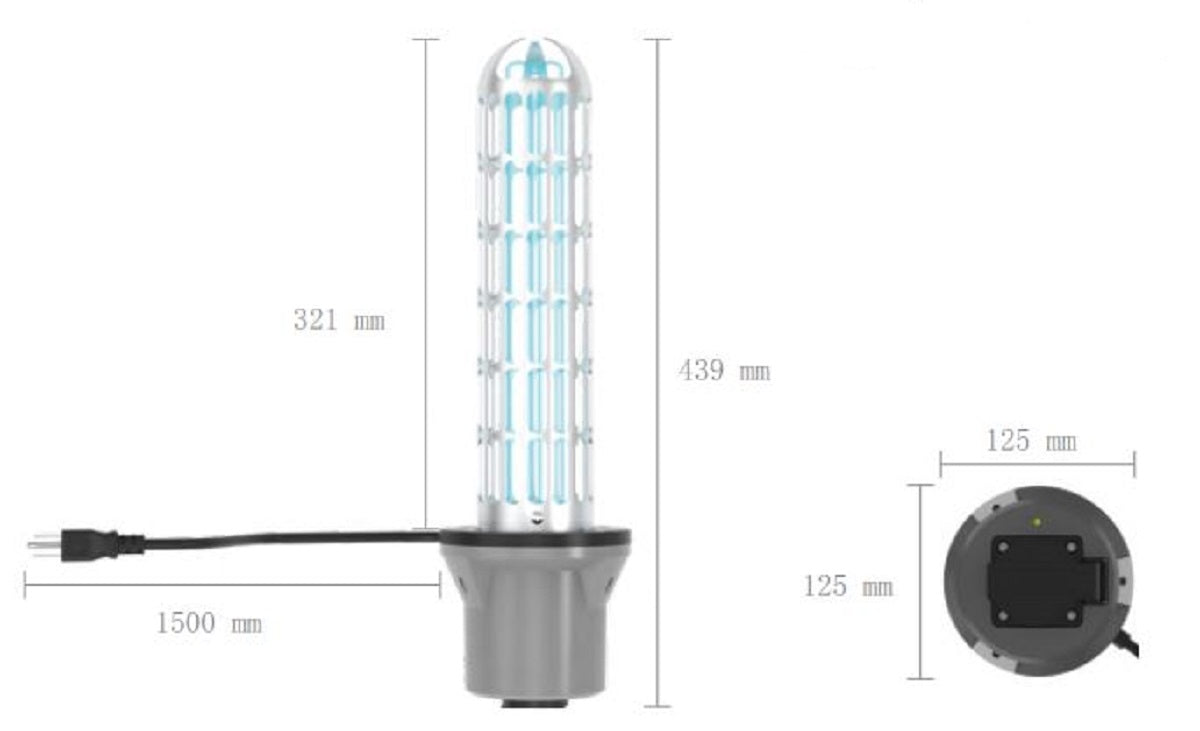

Dimensions 125mm * 125mm * 439mm
Cord Length 1.5 meters
Life span 8000 H
Warranty 1 Year Warranty
