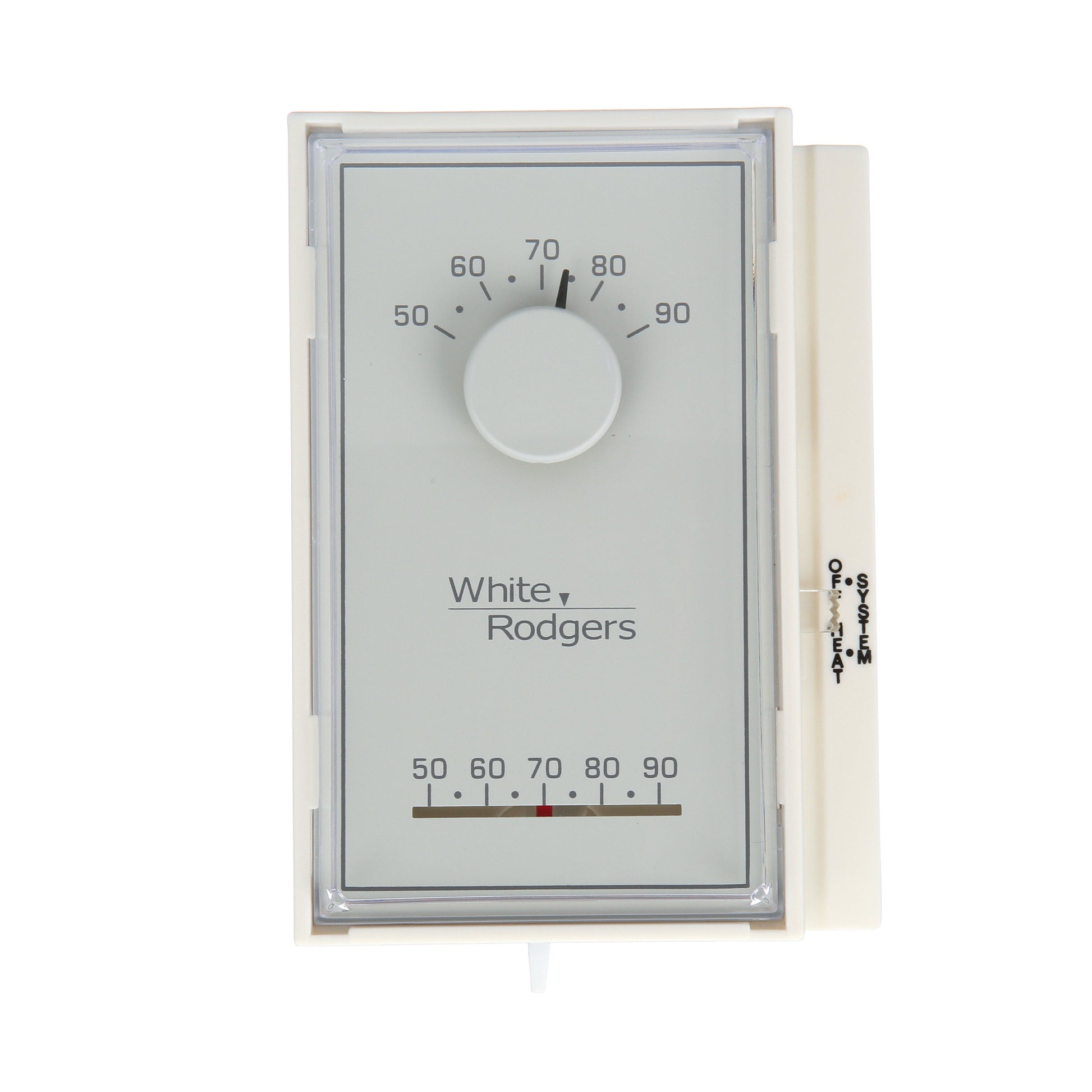

White-Rodgers 1E50N-301 Thermostat

The White-Rodgers 1E50N-301 Thermostat is a universal, non-programmable, mechanical control ideal for reliable heat and cooling. The 1E50N-301 also uses a mercury-free snap-action switch for dependable operation with 24V AC systems.

Designed for conventional gas, oil, or electric heating, this thermostat features a Rectangular Vertical cover in Classic White. It fits 2-3/4" wide by 1-1/2" deep by 4-1/2" high and uses standard R and W terminals for straightforward installation. The 50–90°F set-point range makes it easy to tailor comfort, while the humidity tolerance of 0–90% non-condensing keeps performance steady in any indoor climate.

• Type: Universal, Non-Programmable, Mechanical, 1-Heat
• Voltage: 24V AC at 50/60 Hz
• Switch: Mercury-free snap-action
• Temperature range: 50–90°F (set point)
• Terminals: R and W
• Size: 2-3/4" W x 1-1/2" D x 4-1/2" H
• Humidity: 0–90% non-condensing
• Applications: Conventional gas/oil/electric, electric strip heat, 3-wire zone valve, millivolt compatible

Engineered for reliability, economical operation, and environmentally friendly control, the White-Rodgers 1E50N-301 Thermostat delivers dependable comfort across a range of residential heating and cooling systems.
