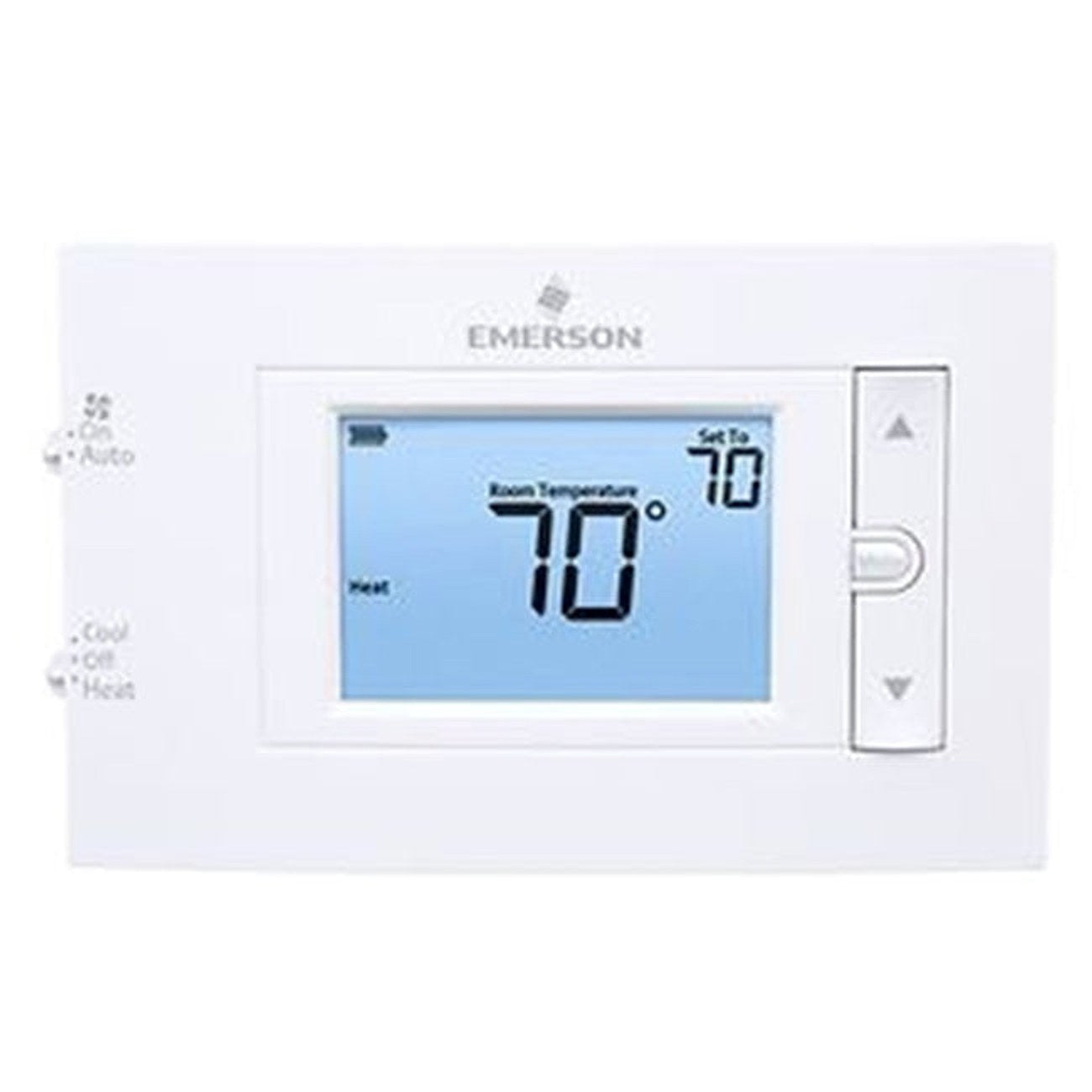

White-Rodgers 1F85U-22NP Thermostat

White-Rodgers 1F85U-22NP thermostat is a universal, non-programmable control designed for both conventional and heat pump systems. This model supports 2-Heat/2-Cool (Conventional) or 2-Heat/1-Cool (Heat Pump) setups, packaged in a rectangular horizontal cover for a clean, modern installation.

• Type: Universal, Non-Programmable thermostat
• System compatibility: 2-Heat/2-Cool (Conventional) or 2-Heat/1-Cool (Heat Pump)
• Power options: Battery operation (30 Volt AC) or 24 Volt AC hardwired
• Electrical & terminals: Terminal designations RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L
• Temperature range: Set point 45–99°F; Display 32–99°F; Operating 32–105°F
• Display & dimensions: 5 in² display; 6" W × 1-1/8" D × 3-3/4" H
• Humidity tolerance: 90% non-condensing
• Applications: Gas, Oil, Electric heating, 3-Wire Zone Valve, Millivolt compatible
• Compliance: NEC Class II

Choose the White-Rodgers 1F85U-22NP thermostat for versatile control that adapts to your HVAC system with simple, reliable operation.
