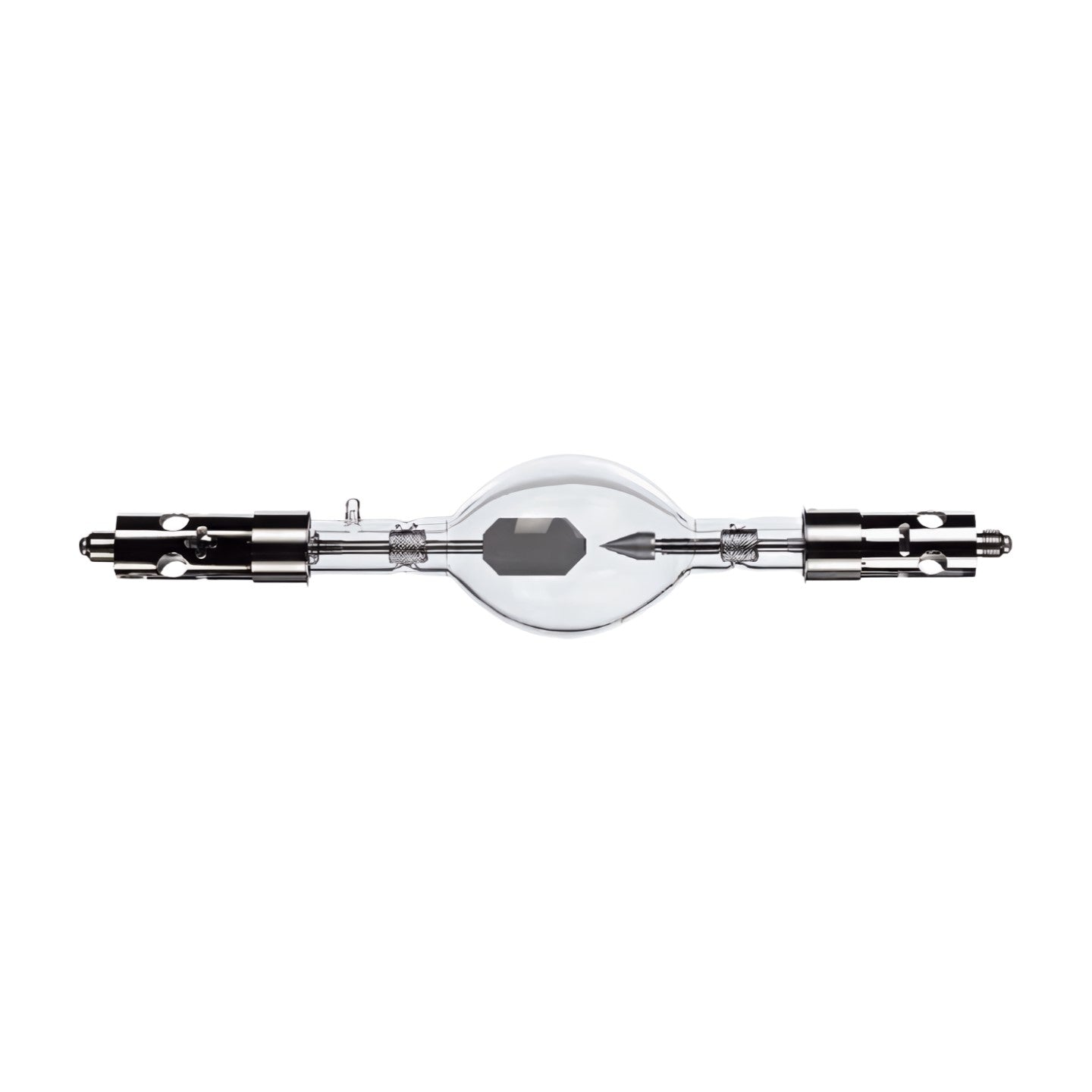

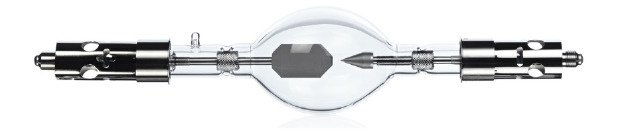

Philips LTI XDC-7000C 7000W Digital Cinema Xenon Lamp for Christie Cinema Projectors
Philips LTI XDC-7000C 7000W Digital Cinema Xenon Lamp for Christie Cinema Projectors
Regular price
$2,029.99 USD
Regular price
Sale price
$2,029.99 USD
Shipping calculated at checkout.
Quantity
SKU:XDC-7000C
View full details
- Important Specs
- 7000 Watts
New OEM LTI Xenon lamp for the following Christie Digital Cinema Projection models: CP2230, CP4320, CP2000-S, CP2000-H, Roadie 25K, Roadie 4K45, and the CP2000-XB
Click here to open the Manufacturers Data Sheet
Click here to open the Manufacturers Data Sheet
Click here to open the complete Cinema Xenon Lamp Cross Reference List.
Lamp Specifications |
|
|---|---|
| Specifications | Data |
| Rated Power | 7000 W |
| Rated Current | 166 A |
| Operating Current Range | 125-175 A |
| Rated Voltage | 42 V |

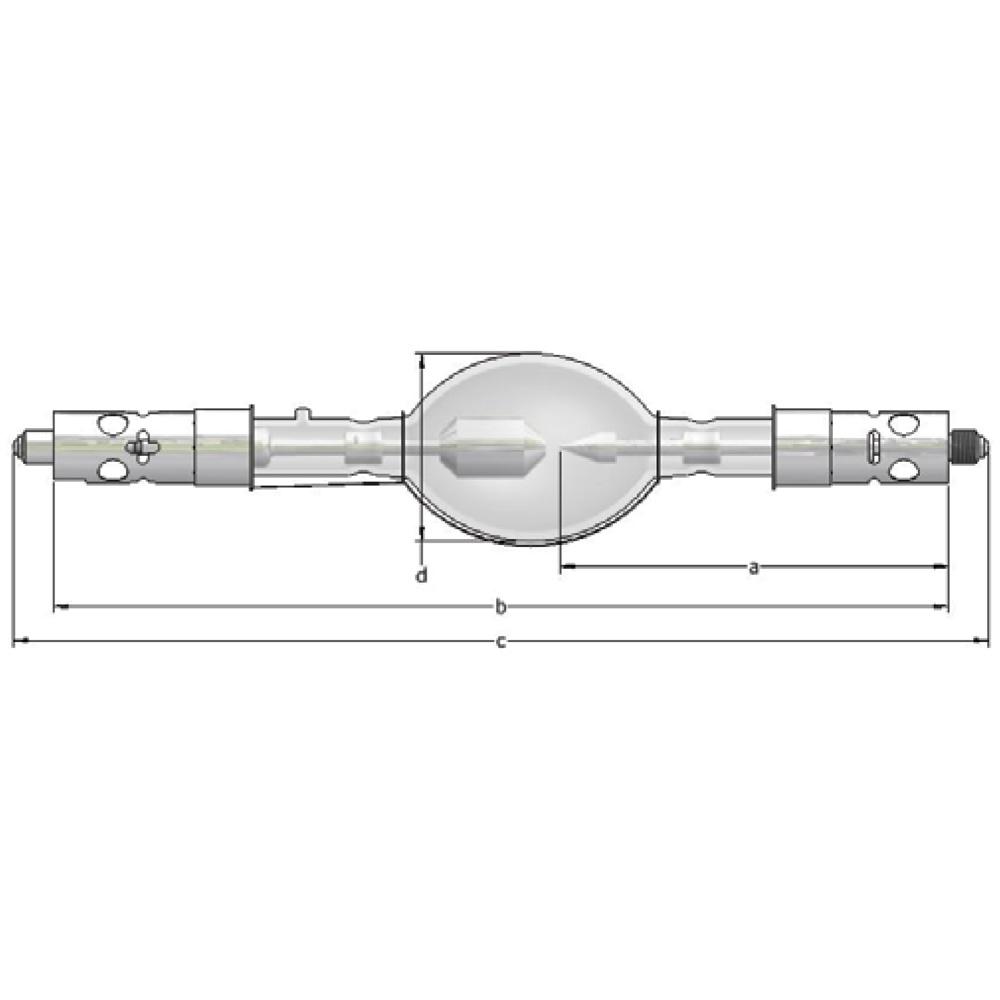

| Distance a | 165.5 mm |
| Length b | 381 mm |
| Length c (max) | 419 mm |
| Cold arc gap | 8 mm |
| Bulb Diameter d | 80 mm |
| Anode (+) Base Diameter | 30 mm |
| Anode Pin Diameter | 14 mm |
| Cathode (-) Base Diameter | 30 mm |
| Cathode Thread Type | M14 x 1.5 |
| Cable Length e | na |
| Min. Cooling Air Flow Velocity | m/sec |
| Base Surface Temperature (max) | 200 d C |
| Warranty | 350 hours (100%) |
| Average Expected Life (H)* | 500 |
* Average expected life is a guideline to help determine how long a lamp can be operated under optimal conditions. If the operating situation is not optimal, a shorter life can be expected.
Non-optimal operating conditions include:
- Starting the lamp at 100% and running at this level throughout lamp life.
- Not providing adequate air flow.
- Poor operating environment.
